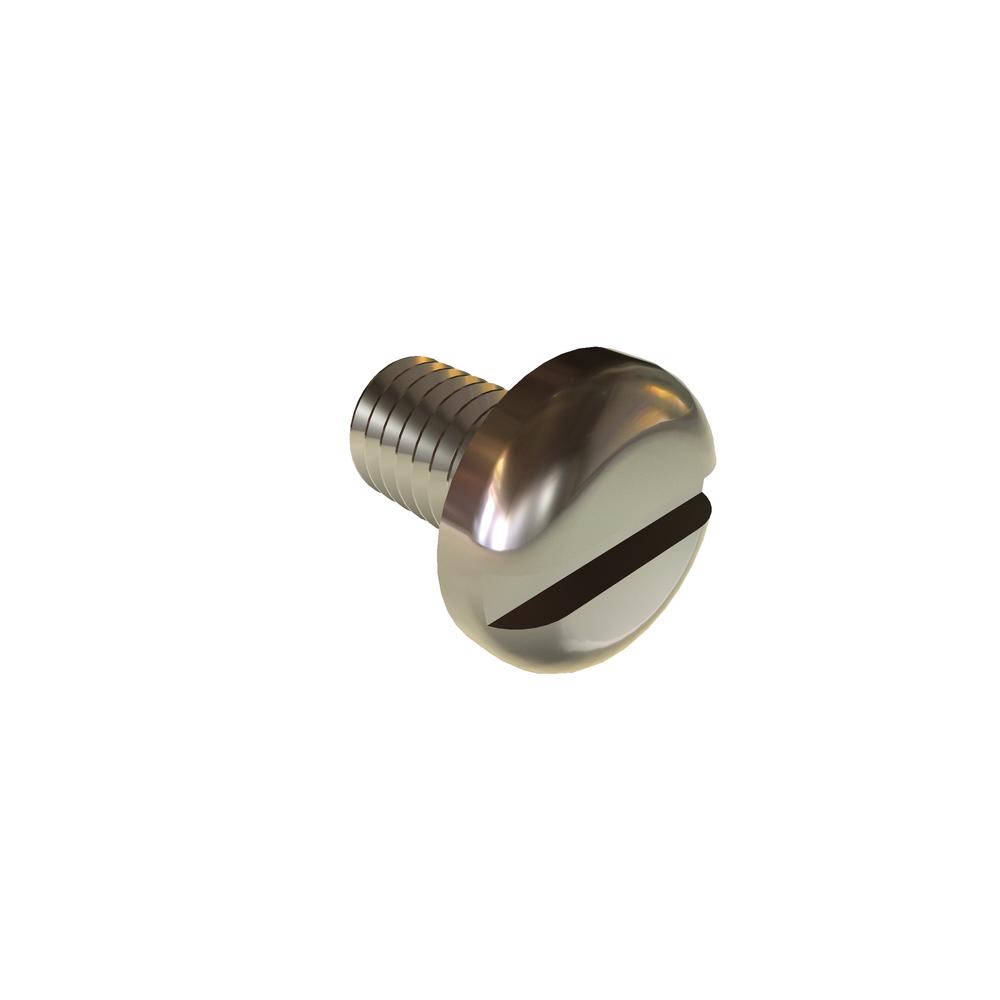

Defaultimage2 Image01



  • Item Id: .3C5SPMS
  • Description: M3-.5 X 5 SLOT PAN HD SST RoHS
  • Quantity Discounts:
    1 to 249250 to 499500 to 9991000 to 2499Call For
    $0.156$0.094$0.078$0.064Larger Quantities
  • Extended Description:
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • Additional Industry Cross Reference91200A111
    Body Diameter (Max.)3.00 mm
    Body Diameter (Min.)2.58 mm
    BrandVARIED
    Drive TypeSlotted
    FinishPlain
    Head Diameter (Max.)5.60 mm
    Head Diameter (Min.)5.30 mm
    Head Height (Max.)1.80 mm
    Head Height (Min.)1.60 mm
    Head Radius (Min.)1.20 mm
    Head TypePan
    MaterialStainless Steel
    Meets (Standard)B18.6.7M
    Nominal Diameter3.00 mm
    RoHSCompliant
    Slot Depth (Min.)0.70 mm
    Slot Width (Max.)1.00 mm
    Slot Width (Min.)0.80 mm
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
    UnitsMetric

Item Substitutes

Item IdDescription
.3C5SPMBPM3-.5 X 5 SLOT PAN HD BR PLNView Details
.3C5SPMNM3-.5 X 5 SLOT PAN HD NYLView Details
.3C5SPMNBM3-.5 X 5 SLOT PAN HD NYL BLK RoHSView Details
