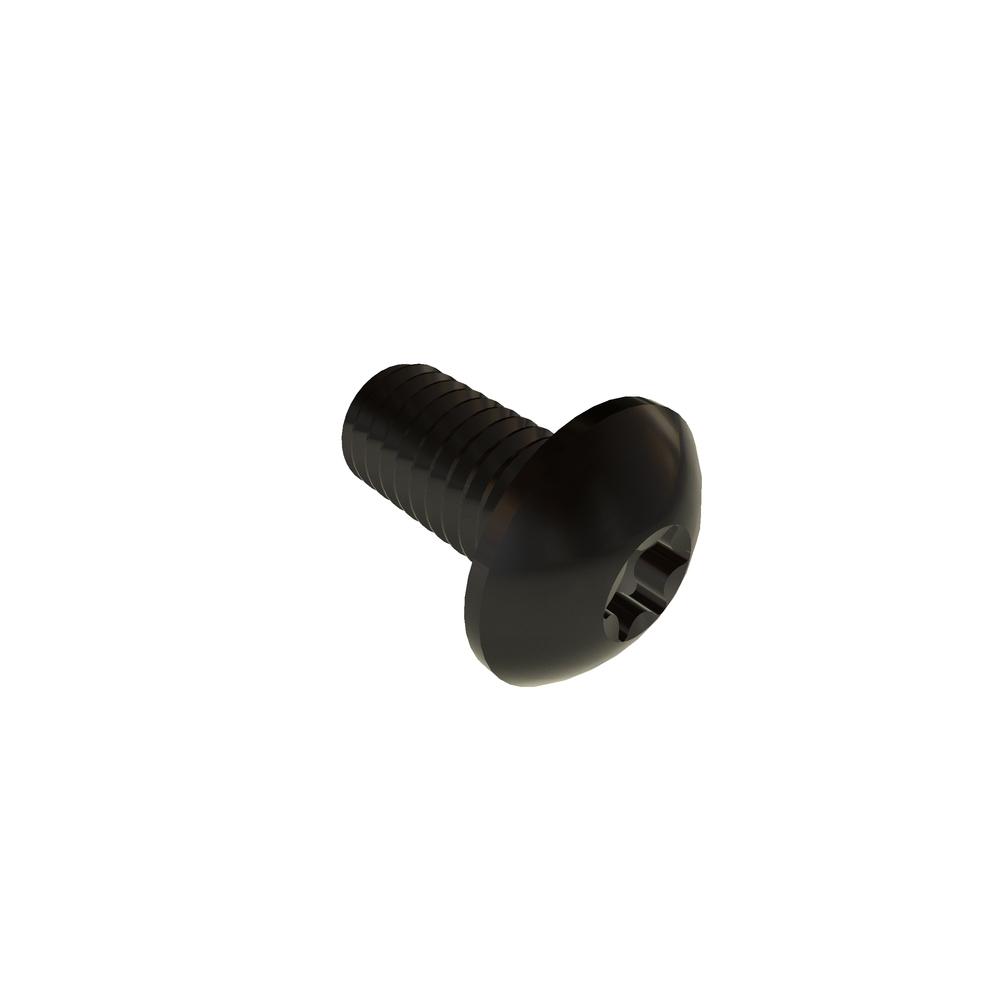

Image for reference purposes only. Actual product may vary.
.3C6BHXSB
M3-.5 X 6 BUT HD TORX SST BLACK OX
Alternate Codes: N/A
M3-.5 X 6 Button Head Torx Stainless Steel Black Oxide RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.662 | $0.364 | $0.303 | $0.260 | $0.214 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Nominal Diameter | 3 mm |
| Length | 6mm |
| Thread Size | M3x0.5 |
| Finish | Black Oxide |
| Material | Stainless Steel |
| Head Type | Button |
| Drive Type | Torx Socket |
| Head Height (Max.) | 1.65 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Drive Size | T8 |
| Fillet Transition Diameter (Min.) | 3.20 mm |
| Fillet Transition Diameter (Max.) | 3.60 mm |
| Head Side Height (Ref.) | 0.38 mm |
| Key Engagement | 0.70 mm |
| Torx Socket Size | 2.31 mm |
| Brand | VARIED |
| Meets (Standard) | ASME B18.3.4M |
| Head Diameter (Max.) | 5.70 mm |
| Head Diameter (Min.) | 5.40 mm |
| Head Height (Min.) | 1.43 mm |
