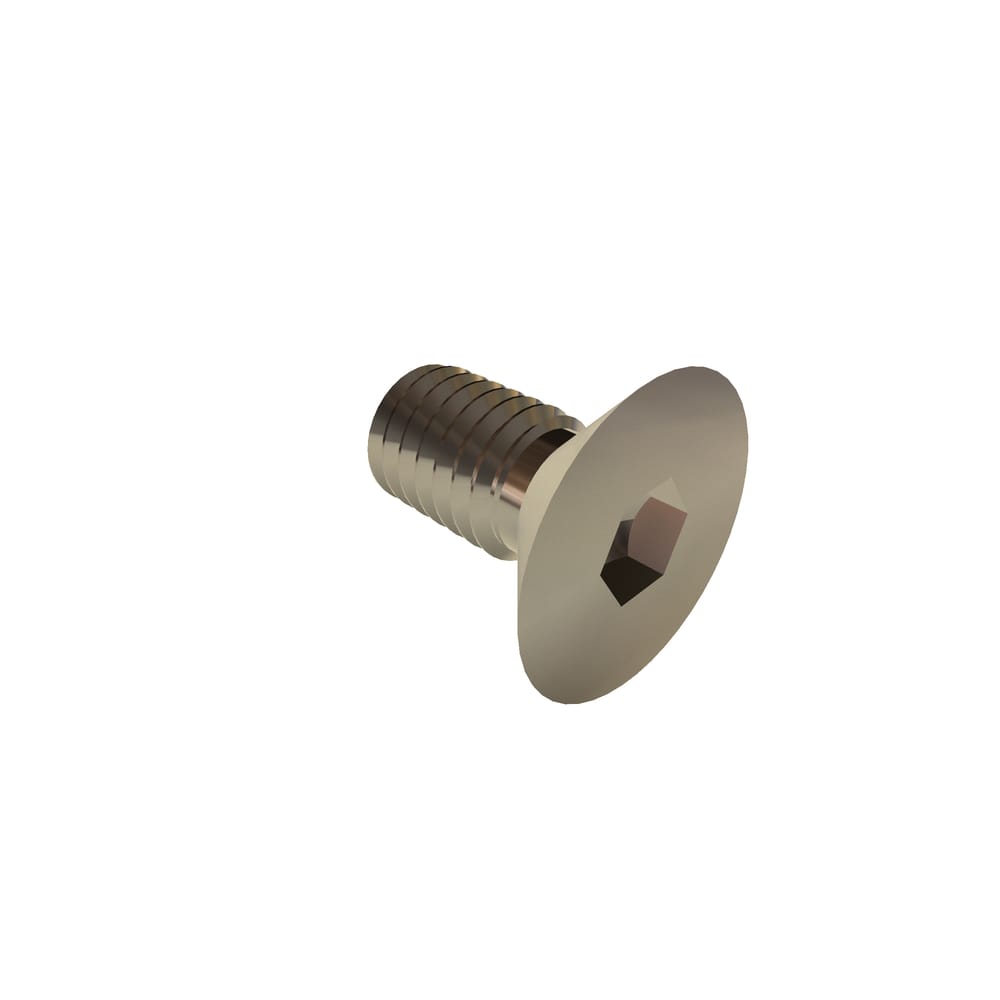

M3-.5 X 6 FLAT SOC VNT SST RoHS
.3C6FHCS/V
| Item Id | .3C6FHCS/V |
| Description | M3-.5 X 6 FLAT SOC VNT SST RoHS |
| Alternate Codes | 90550A115 |
| Extended Description | M3-.5 X 6 FLAT Socket HEAD Vented Stainless Steel RoHS3 |
| Packaging | EA |
| Additional Industry Cross Reference | 90550A115 |
| Brand | VARIED |
| Drive Type | Socket Vented |
| Finish | Plain |
| Head Diameter (Max.) | 6.00 mm |
| Head Diameter (Min.) | 5.70 mm |
| Head Height (Min.) | 1.70 mm |
| Head Type | Flat Head |
| Hex Socket Size | 2.1 |
| Key Engagement | 0.95 mm |
| Length | 6mm |
| Material | Stainless Steel |
| Meets (Standard) | DIN 7991 |
| Nominal Diameter | 3.00 mm |
| RoHS | Compliant |
| Thread Size | M3x0.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
| Vent Hole Diameter | 1.20 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
