.3C6FHXS/P

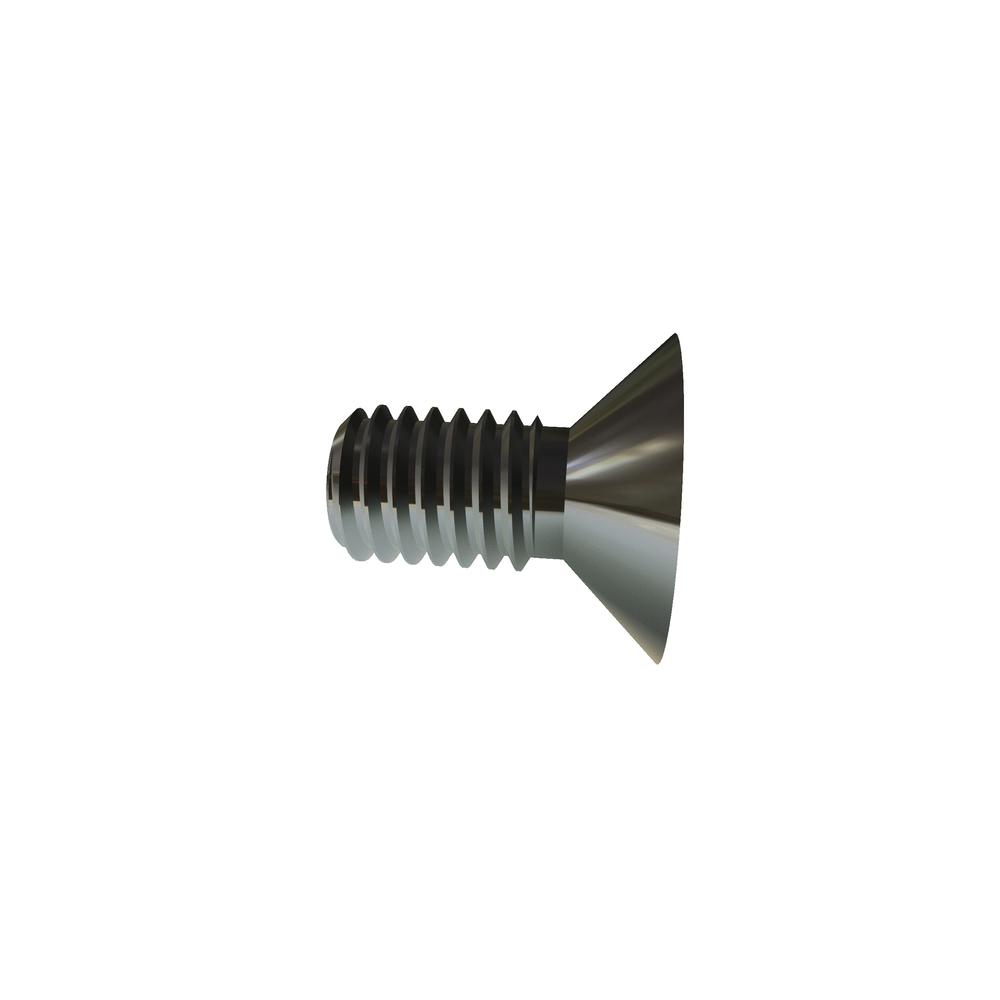

M3-.5 X 6 FLAT TORX PATCH SST RoHS
Alternate Codes: N/A
ISO 14581
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.897 | $0.571 | $0.524 | $0.483 | $0.408 | Larger Quantities |
In Stock
| Thread Size | M3-.5 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Flat |
| Drive Type | Torx Socket |
| Drive Size | 2 mm |
| Key Engagement | 1.20mm |
| Body Diameter | 3.00 mm |
| Torx Socket Size | 2.74 mm |
| Self Locking Type | Patchlock |
| Brand | VARIED |
| Length | 6 mm |
| RoHS | Compliant |
| Meets (Standard) | ASME/ANSl B18.3.1M |
| Head Diameter (Max.) | 6.00 mm |
| Head Diameter (Min.) | 5.70 mm |
| Head Height (Max.) | 1.70 mm |
| Hex Socket Size | 2 mm |
