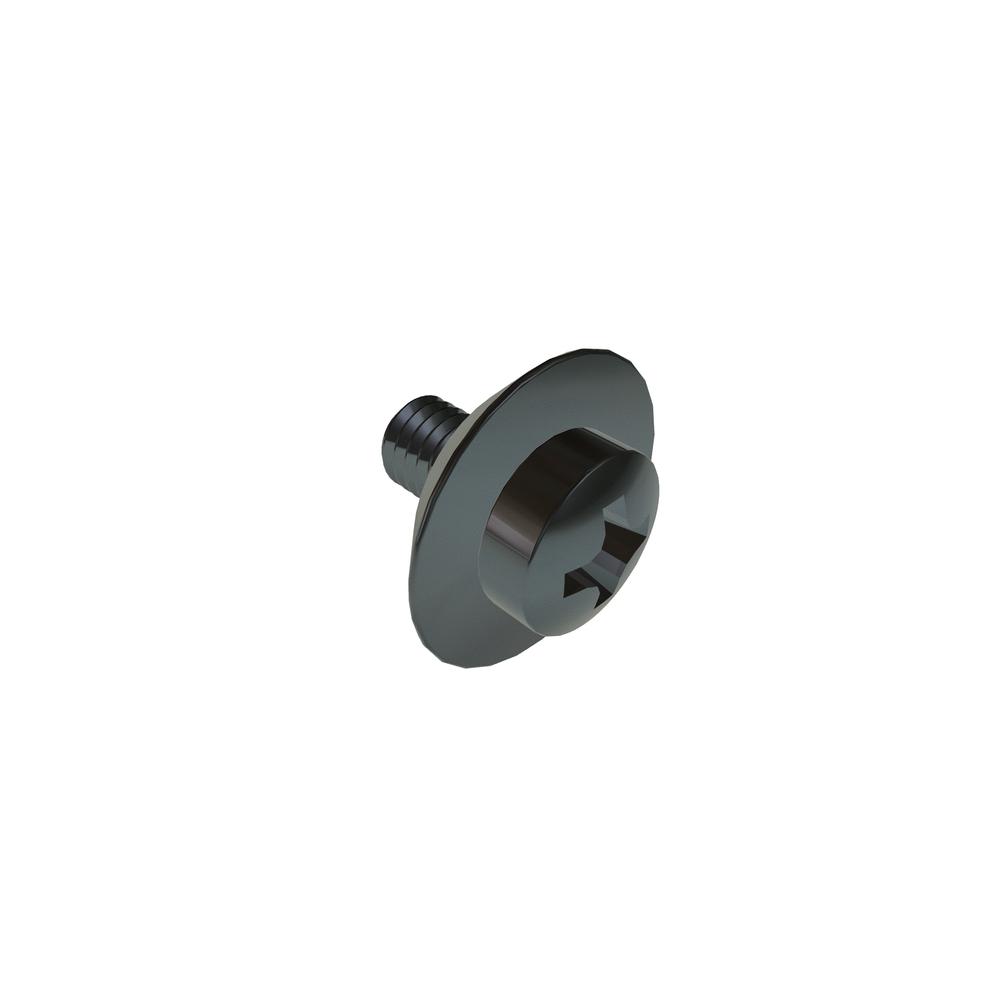

Image for reference purposes only. Actual product may vary.
.3C6PCWZR/P
M3-.5 X 6 PHIL CUP WASH PATCH STL ZN CR3
Alternate Codes: N/A
M3-.5 X 6 Phillips Cup Washer Patch Steel Zinc Plated RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs |
|---|---|---|
| $0.569 | $0.313 | $0.261 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Thread Type | Metric Coarse |
| Crown Height | 0.70 mm |
| Recess Width | 0.83 mm |
| Recess Depth | 2.33 mm |
| Head Side Height | 1.70 mm |
| Thread Size | M3x0.5 |
| Brand | VARIED |
| Head Type | Cup Washer |
| Material | Steel |
| Finish | Zinc Cr3 |
| Units | Metric |
| Nominal Diameter | 3.00 mm |
| Locking Element | Patchlock |
| Drive Type | Phillips |
| Recess Diameter | 3.44 mm |
| Length | 6mm |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 5.50 mm |
| Head Diameter (Min.) | 5.20 mm |
| Washer Inner Diameter | 3.20 mm |
| Washer Outer Diameter | 10.00 mm |
| Washer Height | 1.8 mm |
