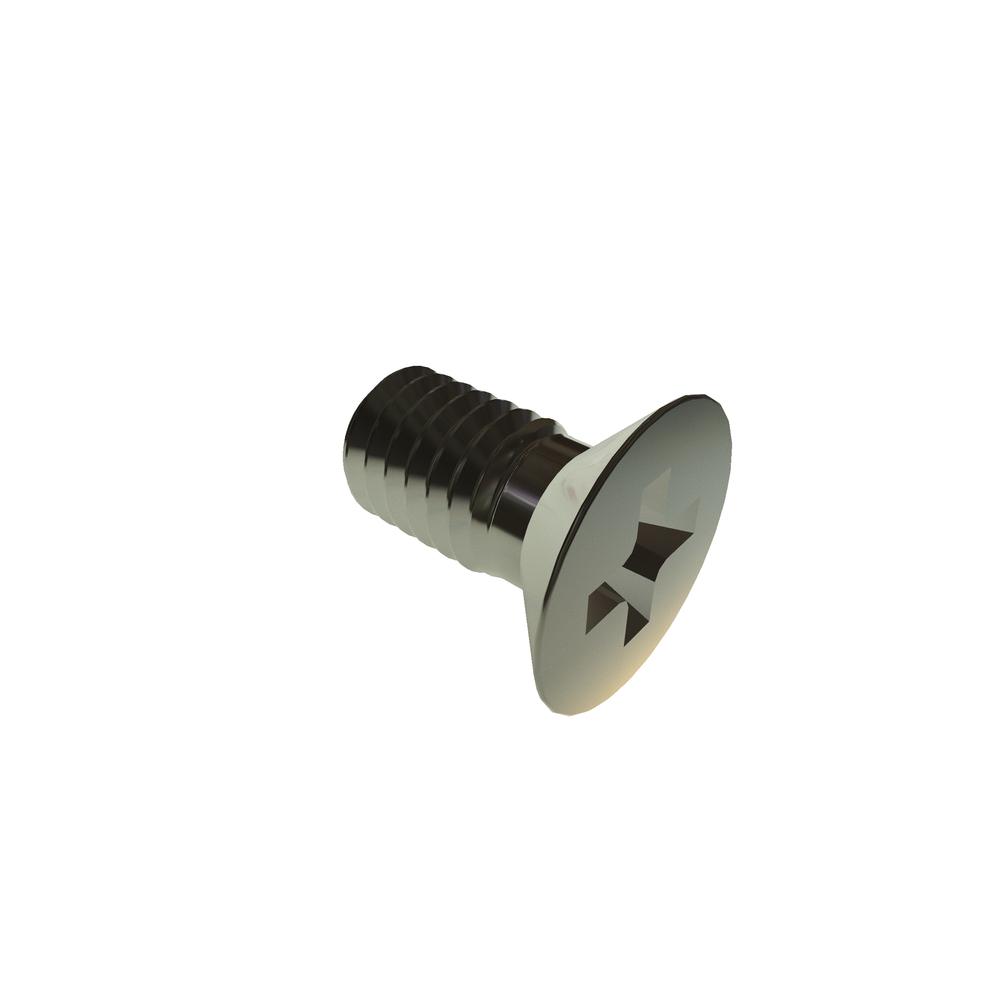

M3-.5 X 6 PHIL FLAT PATCH SST RoHS
.3C6PFMS/P
| Item Id | .3C6PFMS/P |
| Description | M3-.5 X 6 PHIL FLAT PATCH SST RoHS |
| Extended Description | M3-.5 X 6 Phillips FLAT head PATCH Stainless Steel RoHS3 |
| Packaging | EA |
| Additional Industry Cross Reference | 90382A261 |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 5.50 mm |
| Head Diameter (Min.) | 5.20 mm |
| Head Height | 1.70 mm |
| Head Type | Flat |
| Length | 6mm |
| Locking Element | Patchlock |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 3.00 mm |
| Recess Depth | 2.08 mm |
| Recess Diameter | 3.10 mm |
| Recess Width | 0.79 mm |
| RoHS | Compliant |
| Thread Size | M3x0.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
