  • Item Id: .3C6PPIZB

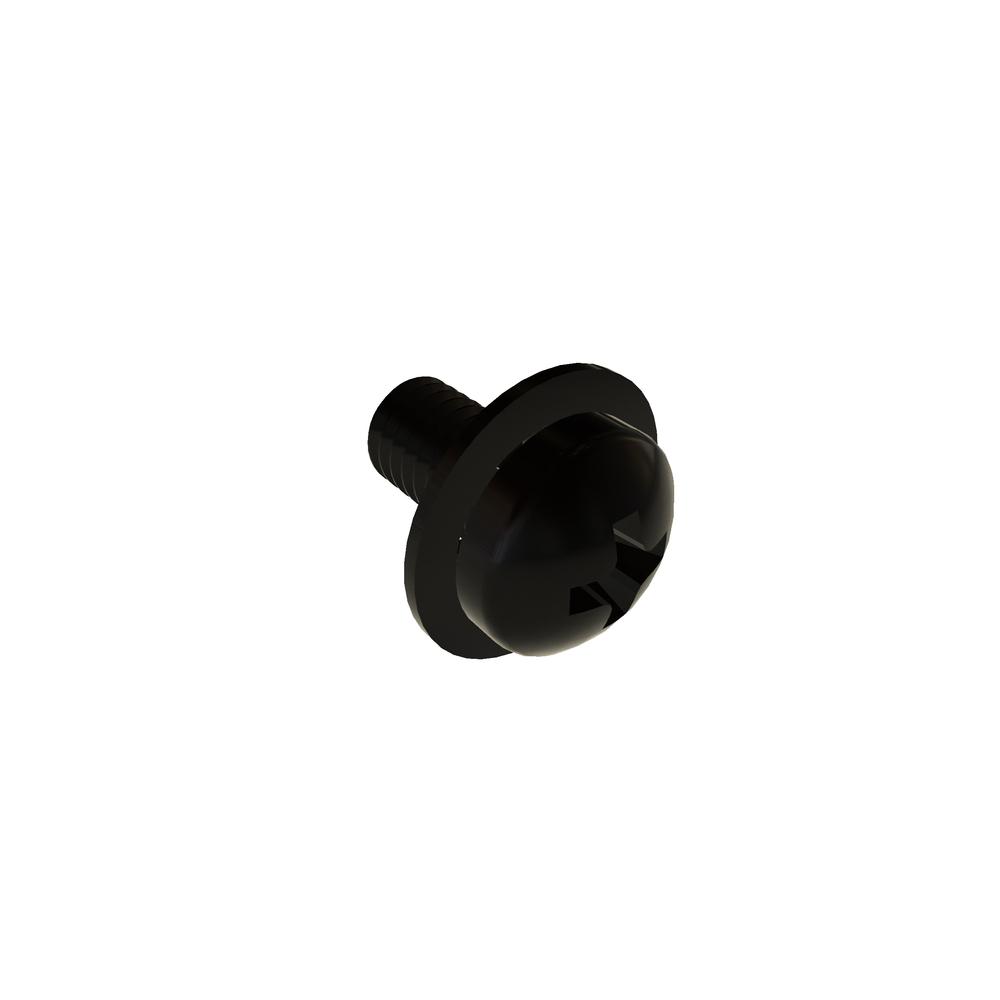

  • Description: M3-.5 X 6 PHIL PAN INT SEMS STL BLK OXID
  • Quantity Discounts:
    1 to 249250 to 499500 to 9991000 to 2499Call For
    $0.181$0.109$0.091$0.074Larger Quantities
  • Extended Description:
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • BrandVARIED
    Drive Size1
    Drive TypePhillips
    FinishBlack Oxide
    Head Diameter (Max.)5.60 mm
    Head Diameter (Min.)5.30 mm
    Head Height (Max.)2.40 mm
    Head Height (Min.)2.20 mm
    Head Radius (Min.)5.00 mm
    Head TypePan
    Lock Washer Outside Diameter (Max.)7.35 mm
    Lock Washer Outside Diameter (Min.)6.85 mm
    Lock Washer Thickness (Max.)0.45 mm
    Lock Washer Thickness (Min.)0.30 mm
    MaterialSteel
    Meets (Standard)ASME B18.6.7M
    Nominal Diameter3.00 mm
    Penetration Depth (Max.)1.80 mm
    Penetration Depth (Min.)1.40 mm
    Recess Diameter2.90 mm
    RoHSCompliant
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
    UnitsMetric
    Washer TypeInternal Tooth Lock Washer

Item Substitutes

Item IdDescription
.3C6PPISM3-.5 X 6 PHIL PAN INT SEMS SST RoHSView Details
.3C6PPIZRM3-.5 X 6 PHIL PAN INT SEMS STL ZN CR3View Details
