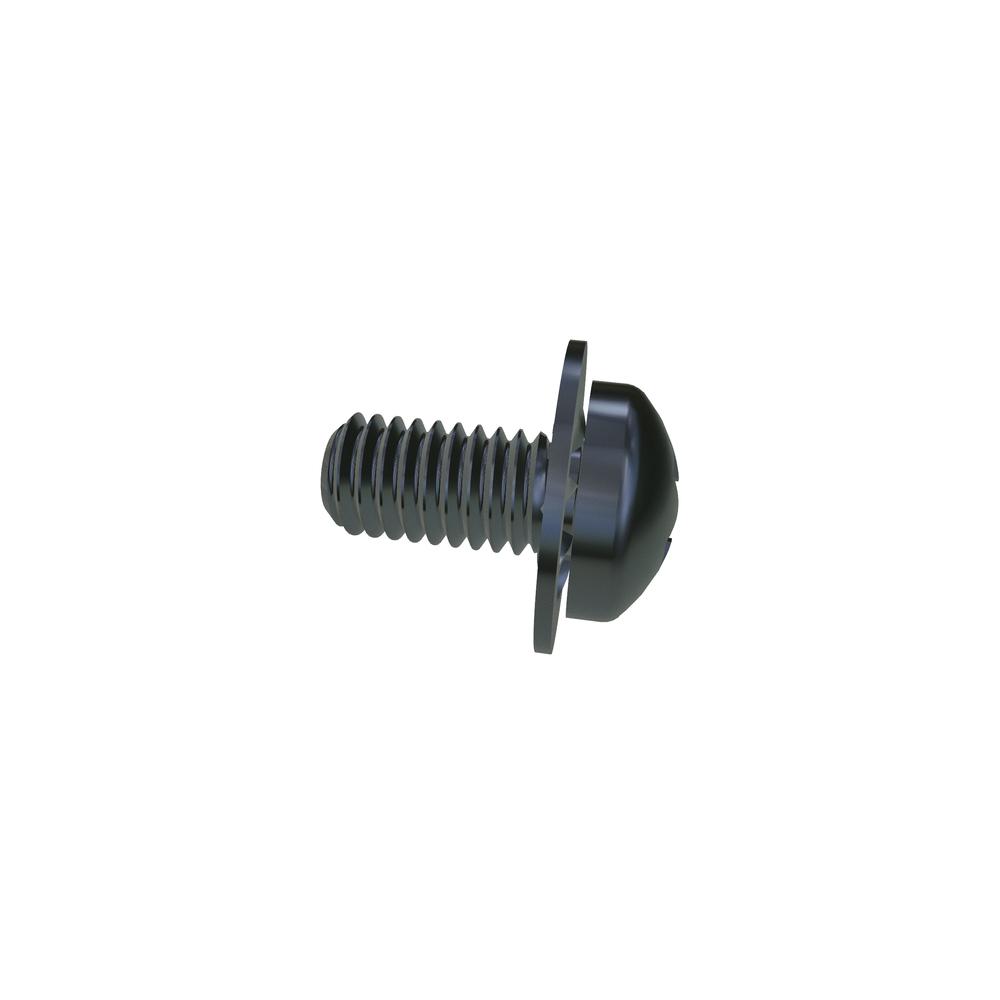

Image for reference purposes only. Actual product may vary.
.3C6PPIZR/JIS
M3-.5 X 6 PHIL PAN INT SEMS STL ZN CR3
Alternate Codes: N/A
M3-.5 X 6 Phillips Pan Head Internal Sems B1188 Steel Zinc Plated RoHS3
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.152 | $0.091 | $0.076 | $0.062 | $0.055 | Larger Quantities |
In Stock
Maximum stock already in cart
| Length | 6mm |
| Thread Size | M3x0.5 |
| Finish | Zinc Cr3 |
| Brand | VARIED |
| Recess Diameter | 2.90 mm |
| Washer Type | Internal Tooth Lock Washer |
| Drive Type | Phillips |
| Material | Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Pan |
| Lock Washer Thickness (Max.) | 0.45 mm |
| Lock Washer Outside Diameter (Min.) | 6.85 mm |
| Lock Washer Outside Diameter (Max.) | 7.35 mm |
| Drive Size | 1 |
| Penetration Depth (Min.) | 1.40 mm |
| Penetration Depth (Max.) | 1.80 mm |
| Head Radius (Min.) | 5.00 mm |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.20 mm |
| Lock Washer Thickness (Min.) | 0.30 mm |
