Item Categories




  • Item Id: .3C6PPLS

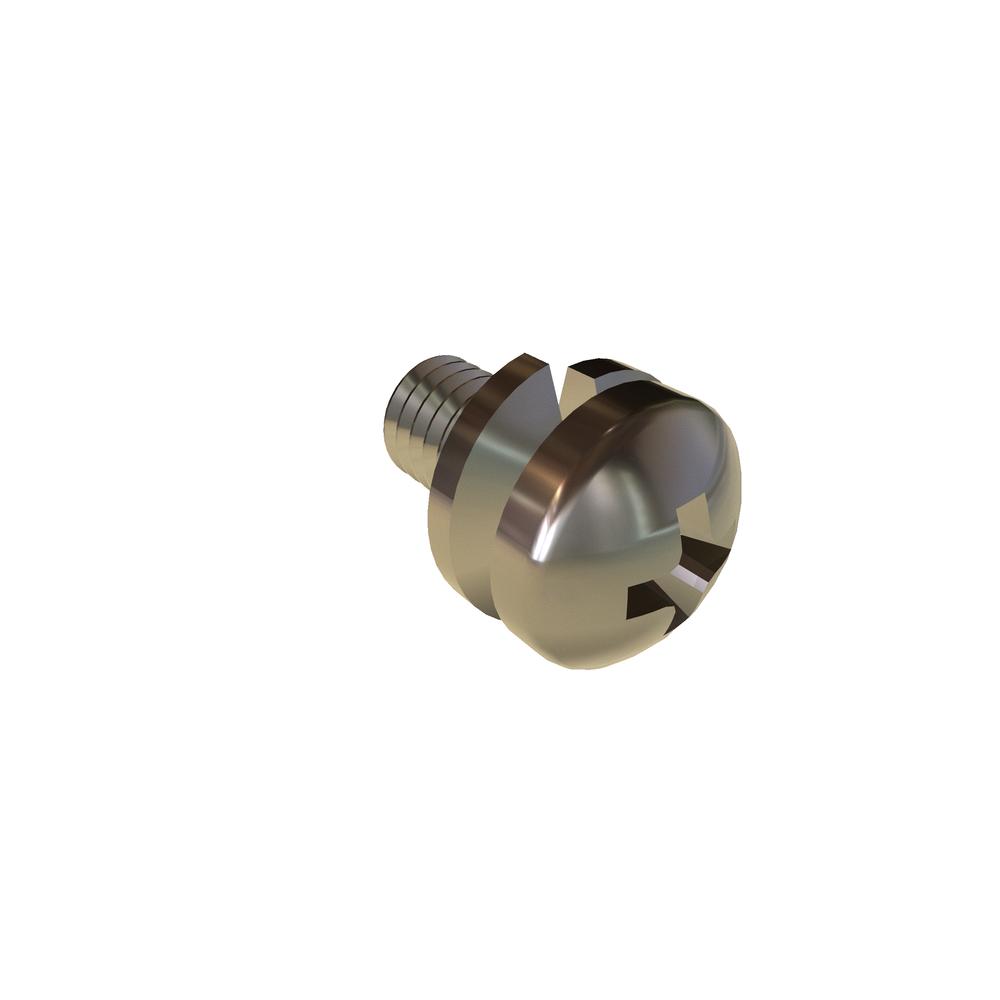

  • Description: M3-.5 X 6 PHIL PAN SPLIT L/W SEMS SST
  • Quantity Discounts:
    1 to 99100 to 249250 to 499500 to 999Call For
    $0.790$0.434$0.362$0.310Larger Quantities
  • Extended Description: RoHS
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • BrandVARIED
    Drive Size1
    Drive TypePhillips
    FinishPlain
    Head Diameter (Max.)5.60 mm
    Head Diameter (Min.)5.30 mm
    Head Height (Max.)2.40 mm
    Head Height (Min.)2.20 mm
    Head Radius (Min.)5.00 mm
    Head TypePan
    Lock Washer Inside Diameter (Max.)2.84 mm
    Lock Washer Inside Diameter (Min.)2.69 mm
    Lock Washer Outside Diameter (Max.)5.73 mm
    Lock Washer Outside Diameter (Min.)5.49 mm
    Lock Washer Thickness (Min.)1.02 mm
    Lock Washer Width (Min.)1.40 mm
    MaterialStainless Steel
    Meets (Standard)ASME B18.6.7M
    Nominal Diameter3.00 mm
    Penetration Depth (Max.)1.80 mm
    Penetration Depth (Min.)1.40 mm
    Recess Diameter2.90 mm
    RoHSCompliant
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
    UnitsMetric
    Washer TypeSplit Lock Washer

Item Substitutes

Item IdDescription
.3C6PPLZRM3-.5 X 6 PHIL PAN SPLIT L/W SEMS STLView Details
