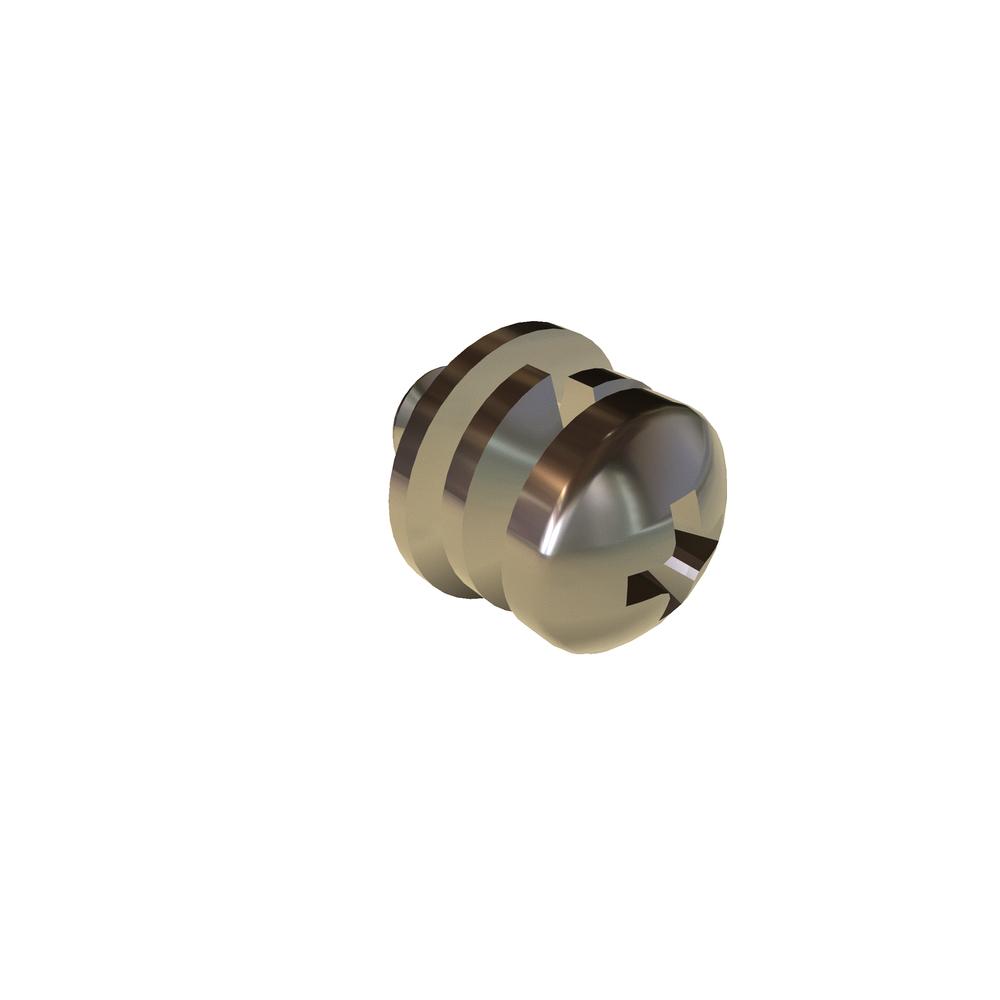

Image for reference purposes only. Actual product may vary.
.3C6PPSS/60OD
M3-.5 X 6 PH PAN DBL SEM SL/FW 6.0mm FW
Alternate Codes: N/A
F/W OD=6.0mm
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 6mm |
| Thread Size | M3x0.5 |
| Finish | Plain |
| Brand | VARIED |
| Recess Diameter | 2.90 mm |
| Washer Type | Split Lock Washer and Flat Washer |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Pan |
| Lock Washer Outside Diameter (Min.) | 5.49 mm |
| Lock Washer Outside Diameter (Max.) | 5.73 mm |
| Drive Size | 1 |
| Penetration Depth (Min.) | 1.40 mm |
| Penetration Depth (Max.) | 1.80 mm |
| Head Radius (Min.) | 5.00 mm |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.20 mm |
| Lock Washer Thickness (Min.) | 1.02 mm |
| Flat Washer Thickness (Min.) | 1.20 mm |
| Flat Washer Thickness (Max.) | 0.80 mm |
| Flat Washer Outside Diameter (Min.) | 10.00 mm |
| Flat Washer Outside Diameter Max | 9.64 mm |
| Lock Washer Inside Diameter (Min.) | 2.69 mm |
| Lock Washer Inside Diameter (Max.) | 2.84 mm |
| Lock Washer Width (Min.) | 1.40 mm |
