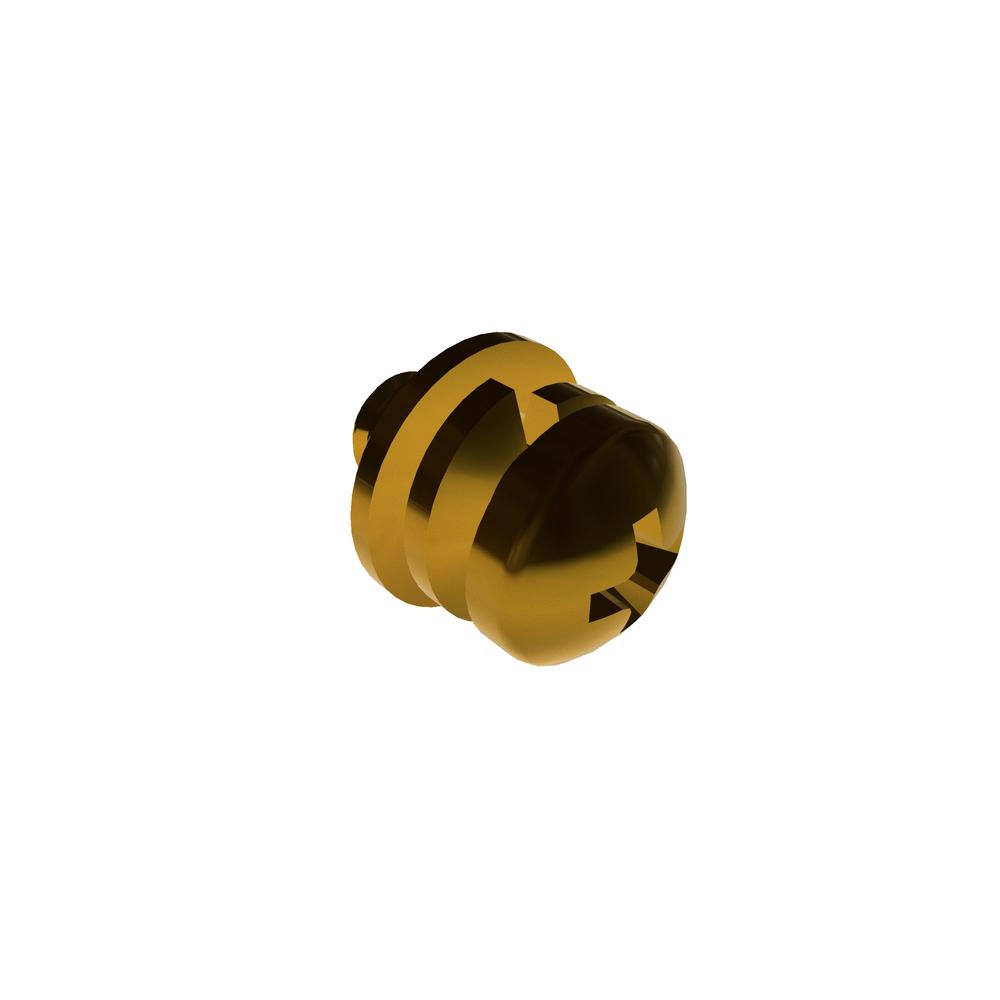

.3C6PPSZY/P-NONROHS
M3-.5 X 6 PH PAN DBL SEM SL/FW PATCH
Alternate Codes: .3C6PPSZY/P, .3C6PPSZY/P -NONROHS
STL ZN YLW Non-RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.324 | $0.170 | $0.135 | $0.125 | $0.104 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M3x0.5 |
| Material | Steel |
| Finish | Zinc Yellow |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Pan |
| Drive Type | Phillips |
| Lock Washer Outside Diameter (Min.) | 5.49 mm |
| Lock Washer Outside Diameter (Max.) | 5.73 mm |
| Washer Type | Split Lock Washer and Flat Washer |
| Drive Size | 1 |
| Penetration Depth (Min.) | 1.40 mm |
| Penetration Depth (Max.) | 1.80 mm |
| Recess Diameter | 2.90 mm |
| Head Radius (Min.) | 5.00 mm |
| Self Locking Type | Patchlock |
| Brand | VARIED |
| Length | 6mm |
| RoHS | Non Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.20 mm |
| Lock Washer Thickness (Min.) | 1.02 mm |
| Flat Washer Thickness (Min.) | 1.20 mm |
| Flat Washer Thickness (Max.) | 0.80 mm |
| Flat Washer Outside Diameter (Min.) | 10.00 mm |
| Flat Washer Outside Diameter Max | 9.64 mm |
| Lock Washer Inside Diameter (Min.) | 2.69 mm |
| Lock Washer Inside Diameter (Max.) | 2.84 mm |
| Lock Washer Width (Min.) | 1.40 mm |
