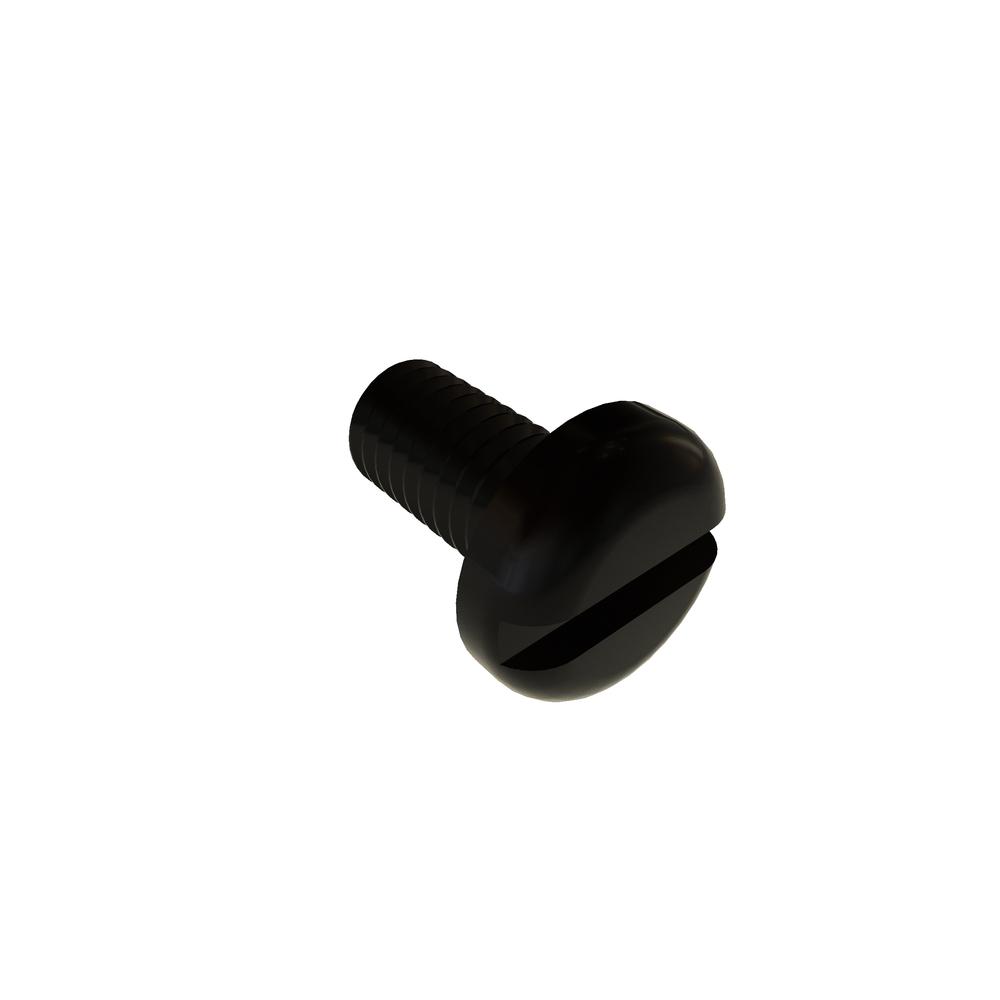

M3-.5 X 6 SLOT PAN HD STL BLK OX RoHS
.3C6SPMZB
| Item Id | .3C6SPMZB |
| Description | M3-.5 X 6 SLOT PAN HD STL BLK OX RoHS |
| Extended Description | |
| Packaging | EA |
| Body Diameter (Max.) | 3.00 mm |
| Body Diameter (Min.) | 2.58 mm |
| Brand | VARIED |
| Drive Type | Slotted |
| Finish | Black Oxide |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 1.80 mm |
| Head Height (Min.) | 1.60 mm |
| Head Radius (Min.) | 1.20 mm |
| Head Type | Pan |
| Material | Steel |
| Meets (Standard) | B18.6.7M |
| Nominal Diameter | 3.00 mm |
| RoHS | Compliant |
| Slot Depth (Min.) | 0.70 mm |
| Slot Width (Max.) | 1.00 mm |
| Slot Width (Min.) | 0.80 mm |
| Thread Size | M3x0.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
