.3C6XPMS/P

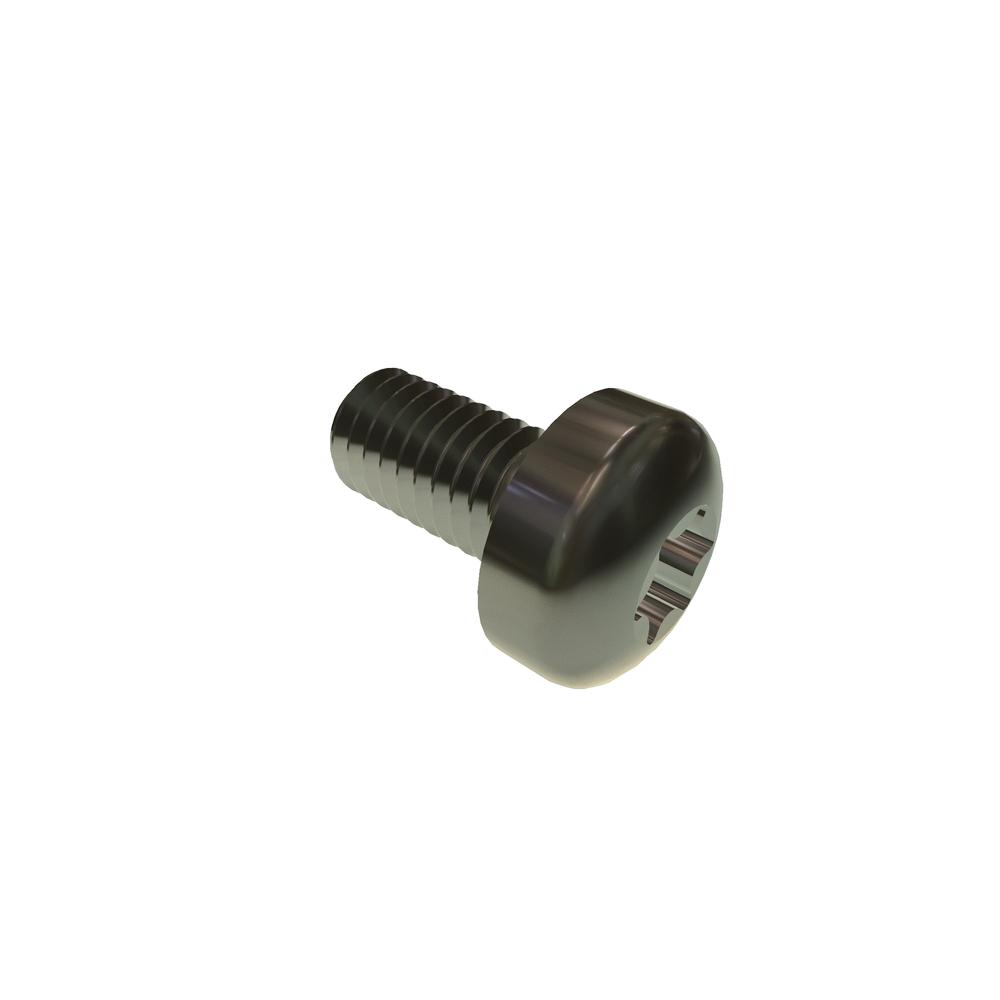

M3 X 6 TORX PAN SS PATCHLOK
Alternate Codes: N/A
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.567 | $0.312 | $0.260 | $0.223 | $0.184 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
| Thread Size | M3x0.5 |
| Material | Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Pan |
| Locking Element | Patchlock |
| Drive Type | Torx |
| Drive Size | T10 |
| Penetration Depth (Min.) | 1.01 mm |
| Penetration Depth (Max.) | 1.27 mm |
| Recess Diameter | 2.80 mm |
| Head Radius (Min.) | 5.00 mm |
| Brand | VARIED |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.26 mm |
