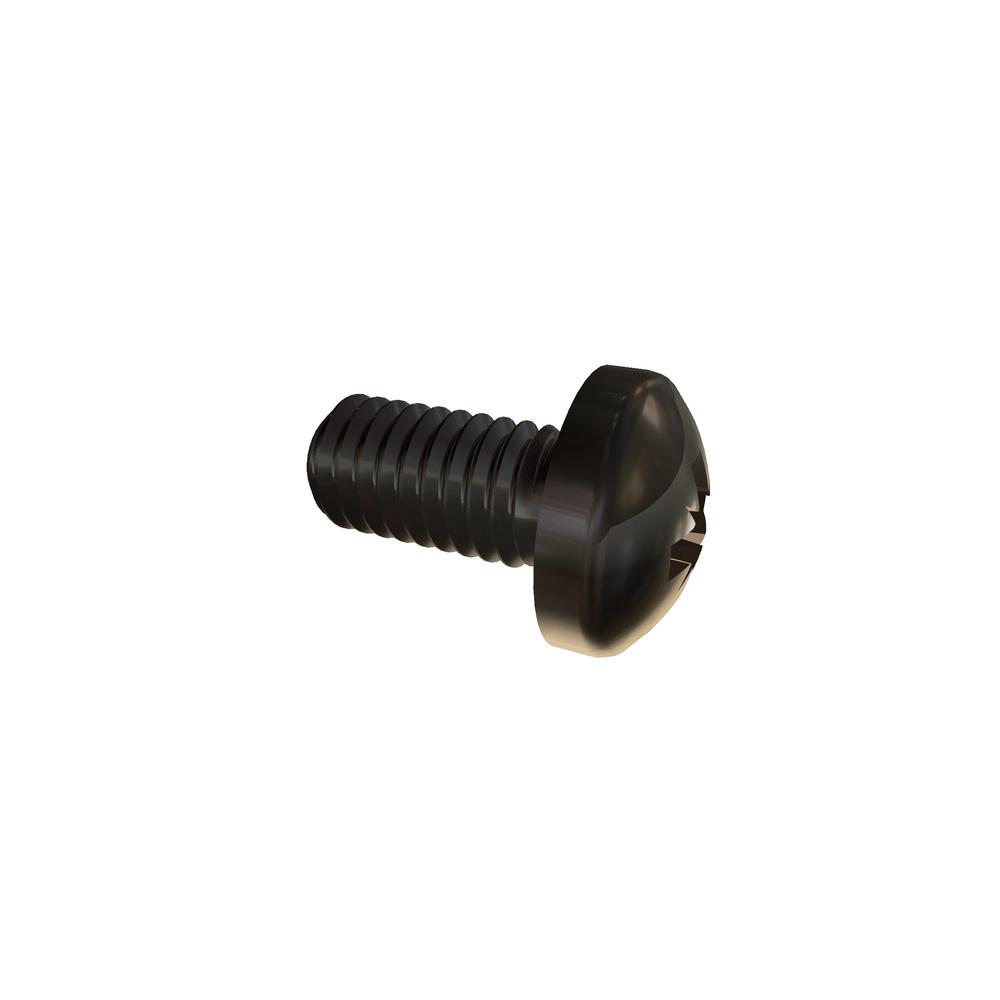

Image for reference purposes only. Actual product may vary.
.3C6ZPM3/P
M3-.5 X 6 POZI PAN PATCH 316 SST RoHS
Alternate Codes: N/A
M3-.5 X 6 Pozi Pan Head Patch 316 Stainless Steel RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M3x0.5 |
| Finish | Plain |
| Material | 316 Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Locking Element | Patchlock |
| Drive Type | Pozi |
| Drive Size | 1 |
| Recess Diameter | 3.00 mm |
| Head Radius (Min.) | 5.00 mm |
| Brand | VARIED |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.20 mm |
| Nominal Diameter | 3.00 mm |
| Head Type | Pan |
| Penetration Depth (Min.) | 1.40 mm |
| Penetration Depth (Max.) | 1.80 mm |
