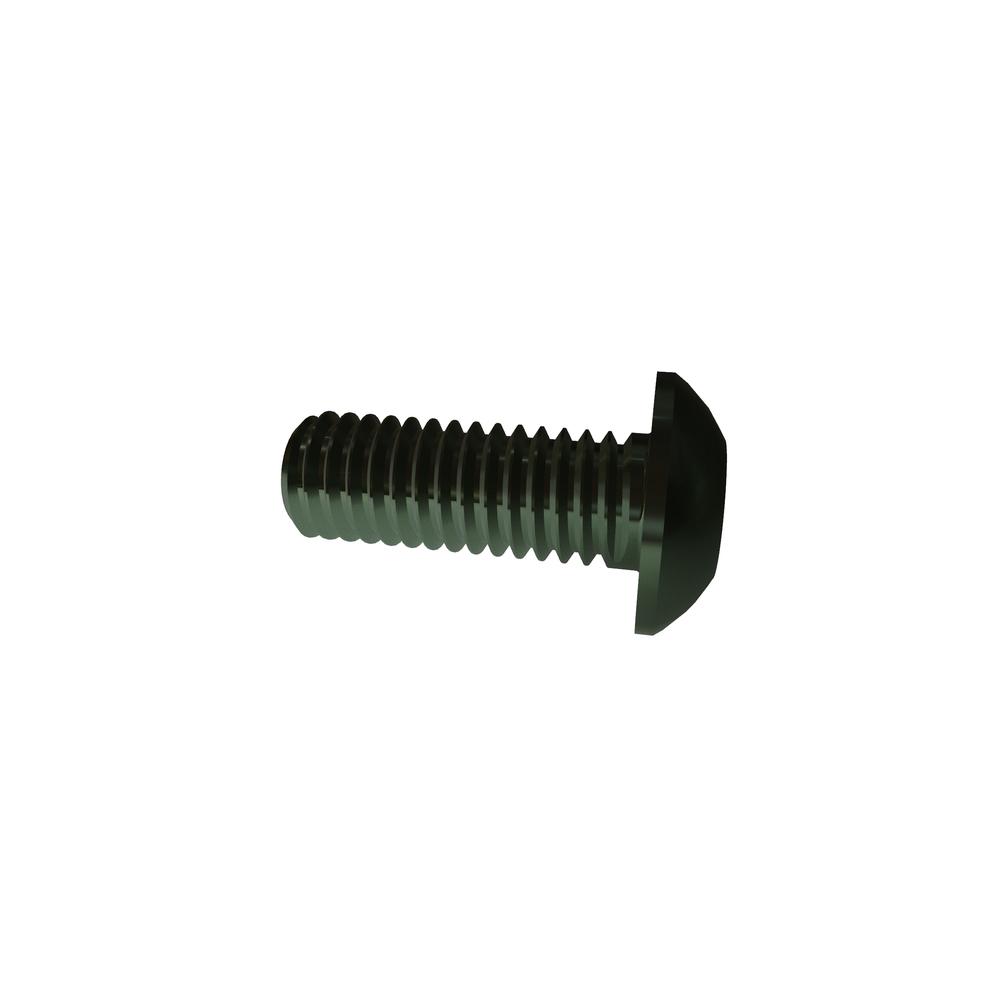

Image for reference purposes only. Actual product may vary.
.3C8BHCAR
M3-.5 X 8 BUT SOC ALLOY ZN CR3
Alternate Codes: N/A
M3-.5 X 8 Button Socket ISO 7380 ALLOY Zinc Plated RoHS3
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.217 | $0.130 | $0.108 | $0.089 | $0.078 | Larger Quantities |
In Stock
Maximum stock already in cart
| Nominal Diameter | 3 mm |
| Length | 8mm |
| Thread Size | M3x0.5 |
| Finish | Zinc Cr3 |
| Material | Alloy Steel |
| Head Type | Button |
| Drive Type | Hex Socket |
| Head Height (Max.) | 1.65 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Brand | VARIED |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3.4M |
| Head Diameter (Max.) | 5.70 mm |
| Head Diameter (Min.) | 5.40 mm |
| Head Height (Min.) | 1.43 mm |
| Hex Socket Size | 2.00 mm |
