.3C8BHCSB

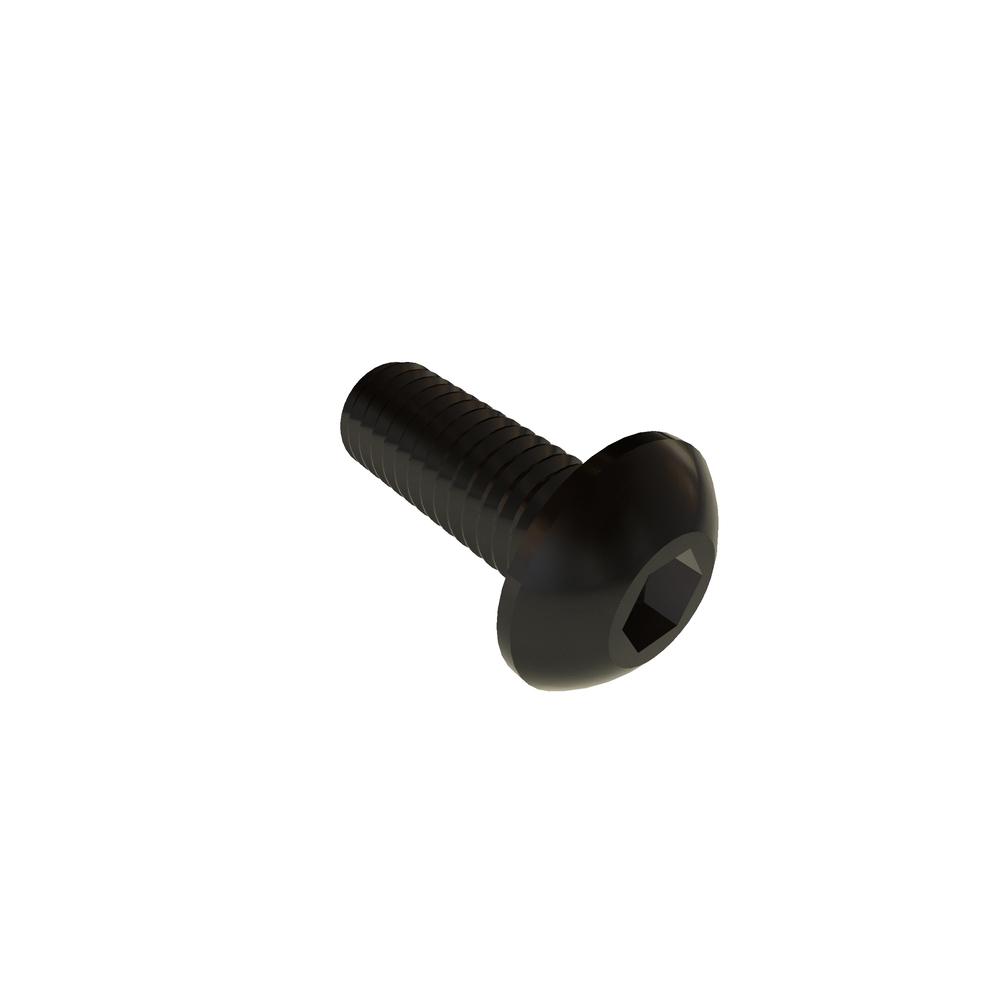

M3-.5 X 8 BUTTON SOC STNLS BLACK
Alternate Codes: N/A
Pricing per Unit
| 1-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | 2500-4999 pcs | Call For |
|---|---|---|---|---|---|
| $0.128 | $0.077 | $0.064 | $0.052 | $0.046 | Larger Quantities |
In Stock
| Thread Size | M3x0.5 |
| Material | Stainless Steel |
| Finish | Black Oxide |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3 mm |
| Head Type | Button |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Min.) | 3.20 mm |
| Fillet Transition Diameter (Max.) | 3.60 mm |
| Head Side Height (Ref.) | 0.38 mm |
| Key Engagement | 1.04 mm |
| Brand | VARIED |
| Length | 8mm |
| Meets (Standard) | ASME B18.3.4M |
| Head Diameter (Max.) | 5.70 mm |
| Head Diameter (Min.) | 5.40 mm |
| Head Height (Max.) | 1.65 mm |
| Head Height (Min.) | 1.43 mm |
| Hex Socket Size | 2.00 mm |
