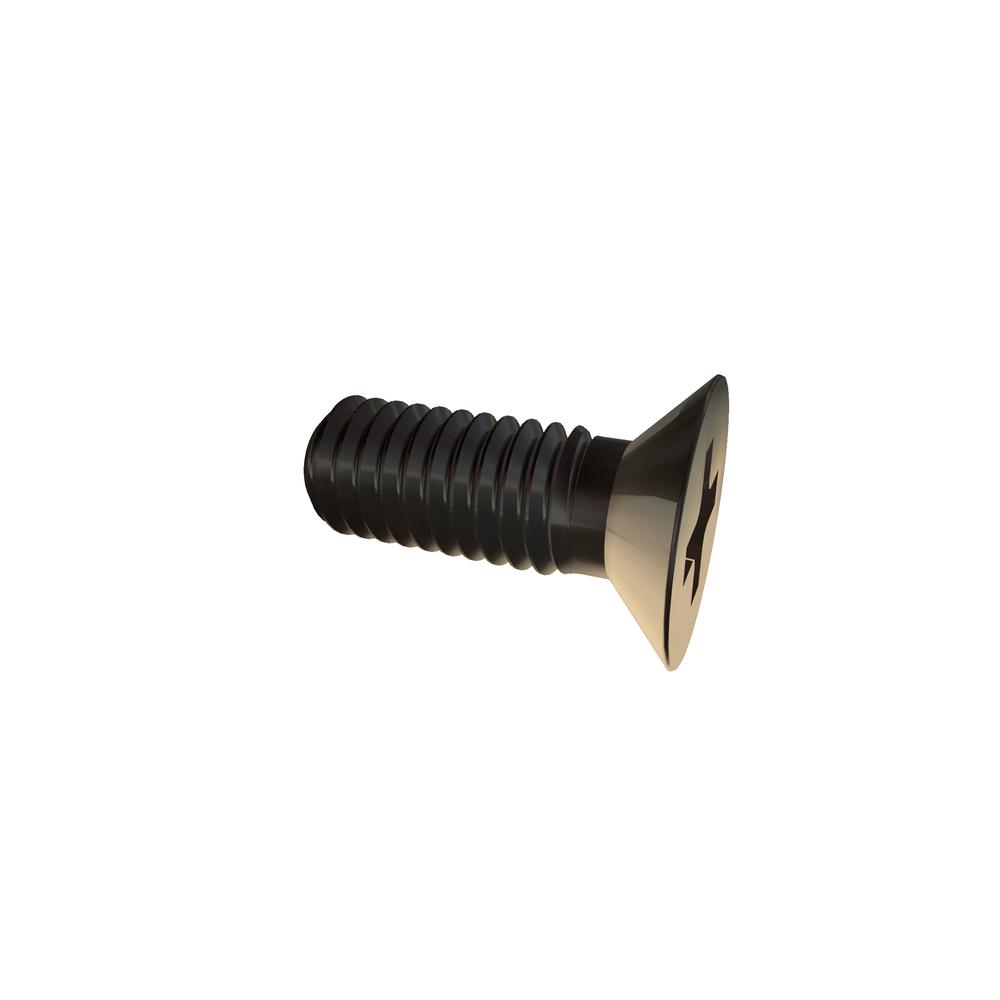

.3C8PFM3
M3-.5 X 8 PHIL FLAT 316 SST RoHS
Alternate Codes: 91801A154
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Thread Size | M3x0.5 |
| Material | 316 Stainless Steel |
| Finish | Plain |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Flat |
| Drive Type | Phillips |
| Drive Size | 1 |
| Recess Diameter | 3.10 mm |
| Head Height | 1.70 mm |
| Recess Depth | 2.08 mm |
| Recess Width | 0.79 mm |
| Brand | VARIED |
| Additional Industry Cross Reference | 91801A154 |
| Length | 8mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 5.50 mm |
| Head Diameter (Min.) | 5.20 mm |
