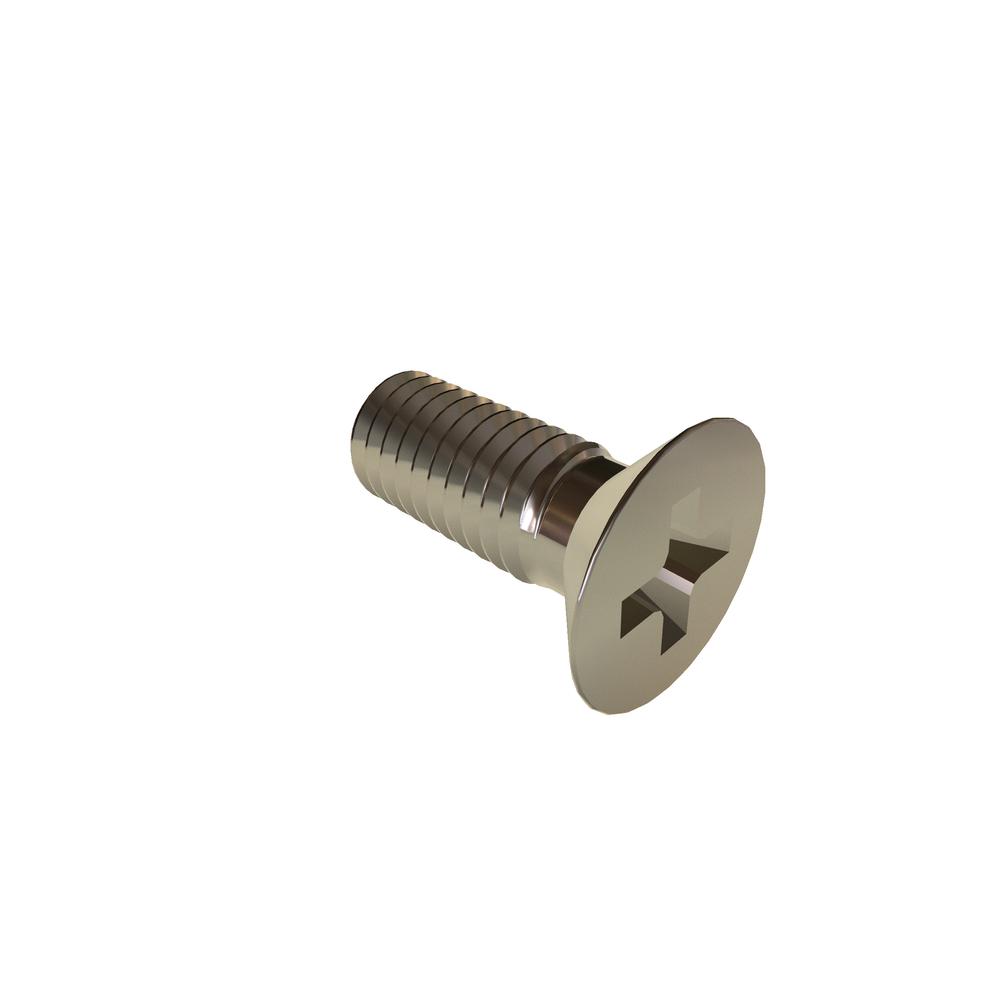

M3-.5 X 8 PHIL FLAT VENTED SST RoHS
.3C8PFMS/V
| Item Id | .3C8PFMS/V |
| Description | M3-.5 X 8 PHIL FLAT VENTED SST RoHS |
| Extended Description | 25 PER BAG |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 5.50 mm |
| Head Diameter (Min.) | 5.20 mm |
| Head Height | 1.70 mm |
| Length | 8mm |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 3.00 mm |
| Recess Depth (Max.) | 2.10 mm |
| Recess Depth (Min.) | 1.70 mm |
| RoHS | Compliant |
| Slot Depth (Max.) | 2.10 mm |
| Slot Depth (Min.) | 1.70 mm |
| Thread Size | M3x0.5 |
| Thread Type | Metric Coarse |
| Type | Flat Head Vented |
| Units | Metric |
| Vent Hole Diameter | 1.20 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
