  • Item Id: .3C8PPIS

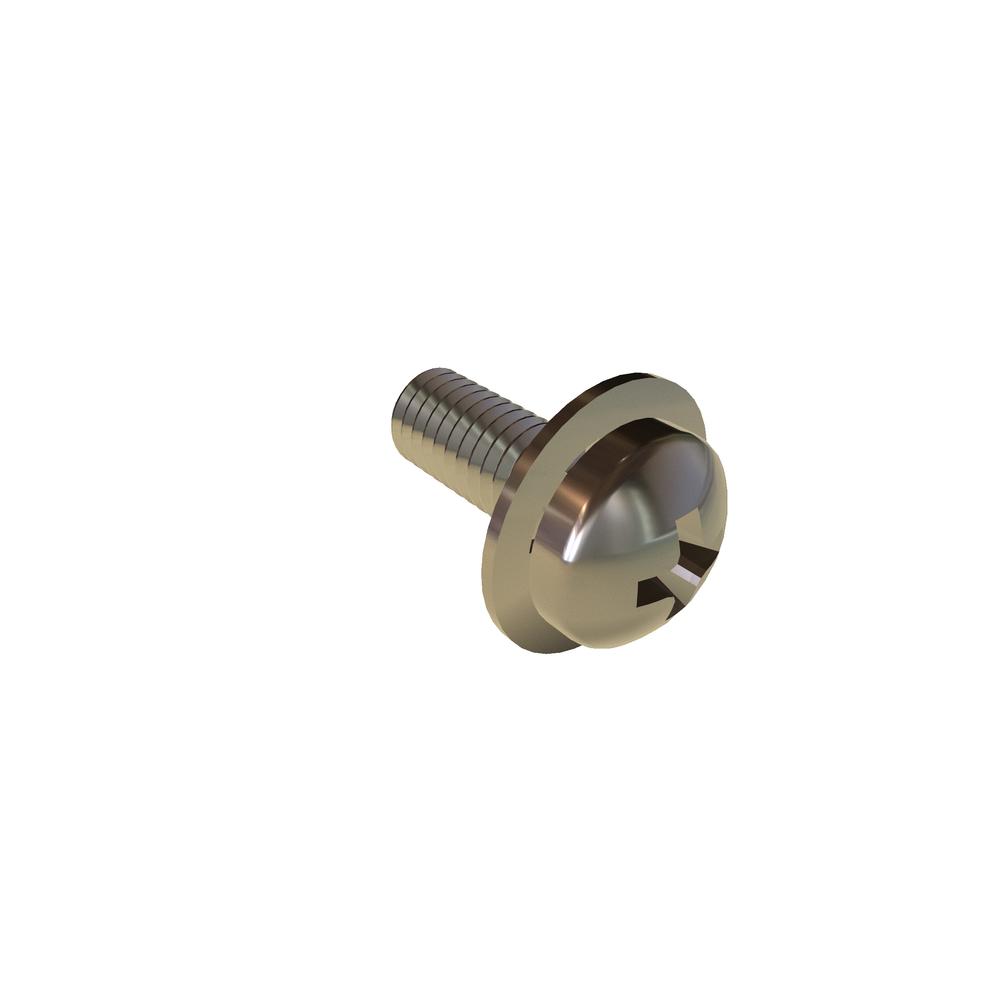

  • Description: M3-.5 X 8 PHIL PAN INT SEMS SST
  • Quantity Discounts:
    1 to 99100 to 249250 to 499500 to 999Call For
    $0.477$0.251$0.199$0.184Larger Quantities
  • Extended Description: RoHS
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • Additional Industry Cross Reference90317A115
    BrandVARIED
    Drive Size1
    Drive TypePhillips
    FinishPlain
    Head Diameter (Max.)5.60 mm
    Head Diameter (Min.)5.30 mm
    Head Height (Max.)2.40 mm
    Head Height (Min.)2.20 mm
    Head Radius (Min.)5.00 mm
    Head TypePan
    Lock Washer Outside Diameter (Max.)7.35 mm
    Lock Washer Outside Diameter (Min.)6.85 mm
    Lock Washer Thickness (Max.)0.45 mm
    Lock Washer Thickness (Min.)0.30 mm
    MaterialStainless Steel
    Meets (Standard)ASME B18.6.7M
    Nominal Diameter3.00 mm
    Penetration Depth (Max.)1.80 mm
    Penetration Depth (Min.)1.40 mm
    Recess Diameter2.90 mm
    RoHSCompliant
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
    UnitsMetric
    Washer TypeInternal Tooth Lock Washer
