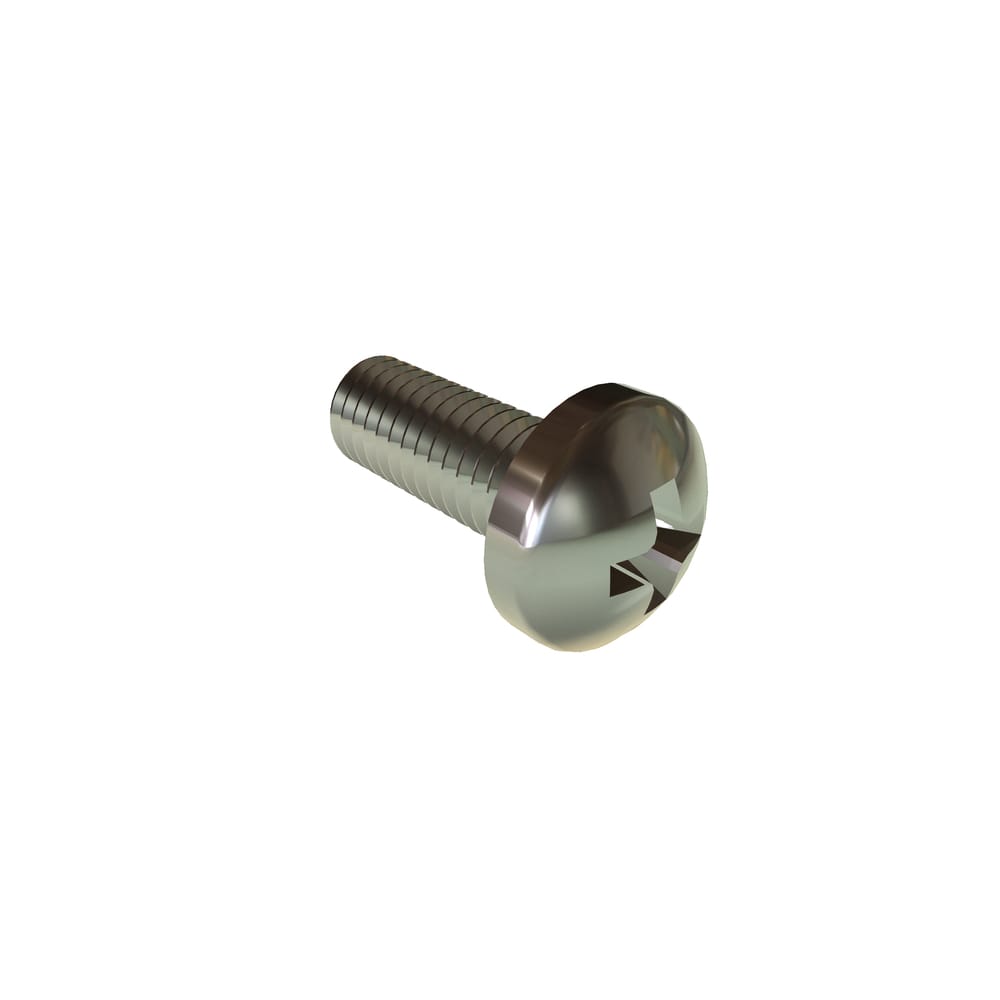

Defaultimage2 .3C8PPMS M3-.5 X 8 PH PAN SST



  • Item Id: .3C8PPMS
  • Description: M3-.5 X 8 PH PAN SST
  • Alternate Codes: 1900-0090, 30-0241-004, 92000A118, BN660 M3X8
  • Quantity Discounts:
    1 to 249250 to 499500 to 9991000 to 24992500 to 4999Call For
    $0.131$0.079$0.066$0.054$0.047Larger Quantities
  • Extended Description: RoHS
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • Additional Industry Cross Reference92000A118 92000A118
    Body Diameter (Max.)3.00 mm
    Body Diameter (Min.)2.58 mm
    BrandVARIED
    Drive Size1
    Drive TypePhillips
    FinishPlain
    Head Diameter (Max.)5.60 mm
    Head Diameter (Min.)5.30 mm
    Head Height (Max.)2.40 mm
    Head Height (Min.)2.26mm
    Head Radius (Min.)5.00 mm
    Head TypePan
    MaterialStainless Steel
    Meets (Standard)B18.6.7M
    Nominal Diameter3.00 mm
    Recess Depth (Max.)1.80 mm
    Recess Depth (Min.)1.40 mm
    Recess Diameter2.90 mm
    RoHSCompliant
    Thread SizeM3x0.5
    Thread TypeMetric Coarse
    UnitsMetric

Item Substitutes

Item IdDescription
.3C8PPMS/PM3-.5 X 8 PH PAN PATCH SST RoHSView Details
.3C8PPMSBM3-.5 X 8 PH PAN SST BLACKView Details
.3C8PPMZBM3-.5 X 8 PH PAN STL BLKView Details
.3C8PPMZRM3-.5 X 8 PH PAN 4.8 STL ZNView Details
.3C8PPMZR/PM3-.5 X 8 PH PAN PATCH 4.8 STL ZNView Details
