Image for reference purposes only. Actual product may vary.
.3C8PPMS/SEEL

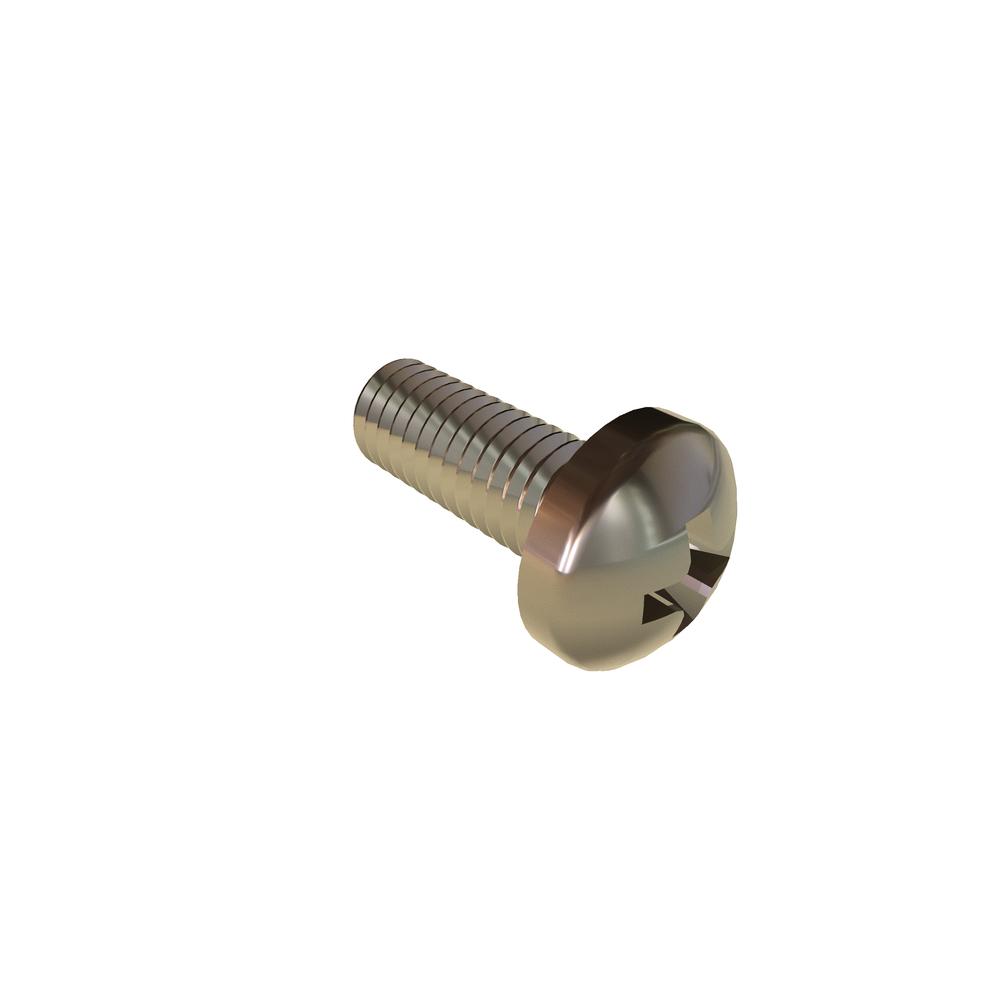

M3-.5 X 8 PH PAN SEELSKREW SST
Alternate Codes: 93627A413
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $1.247 | $0.794 | $0.729 | $0.672 | $0.567 | Larger Quantities |
In Stock
Maximum stock already in cart
| Nominal Diameter | 3.00 mm |
| Thread Size | M3x0.5 |
| Finish | Plain |
| Recess Depth (Max.) | 1.80 mm |
| Recess Depth (Min.) | 1.40 mm |
| Recess Diameter | 2.90 mm |
| O-Ring Thickness | 0.85 mm |
| O-Ring Diameter | 4.70 mm |
| Drive Type | Phillips |
| Head Type | Pan |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Drive Size | 1 |
| Head Radius (Min.) | 5.00 mm |
| Additional Industry Cross Reference | 93627A413 |
| Meets (Standard) | B18.6.7M |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.20 mm |
