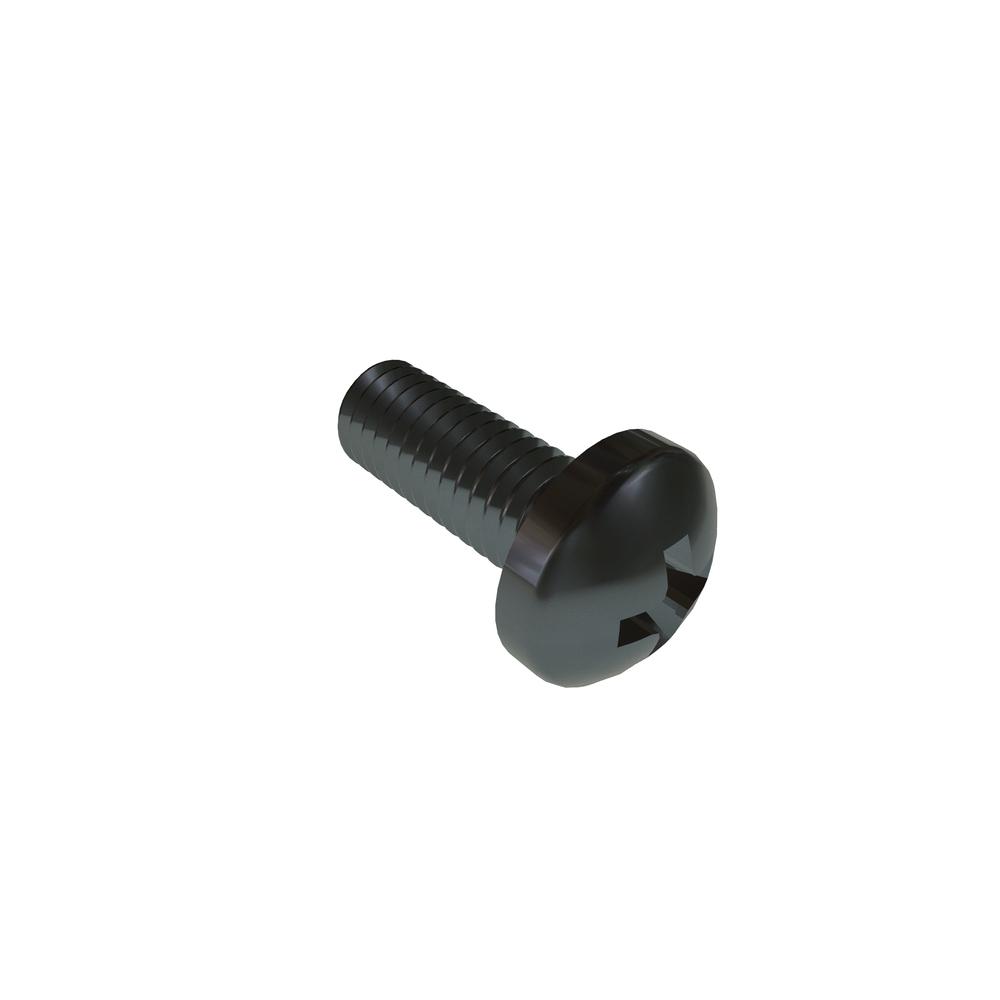

M3-.5 X 8 PH PAN PATCH STL ZN CR3
.3C8PPMZR/P
| Item Id | .3C8PPMZR/P |
| Description | M3-.5 X 8 PH PAN PATCH 4.8 STL ZN |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Size | 1 |
| Drive Type | Phillips |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.20 mm |
| Head Radius (Min.) | 5.00 mm |
| Head Type | Pan |
| Locking Element | Patchlock |
| Material | Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 3.00 mm |
| Penetration Depth (Max.) | 1.80 mm |
| Penetration Depth (Min.) | 1.40 mm |
| Recess Diameter | 2.90 mm |
| Thread Size | M3x0.5 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
