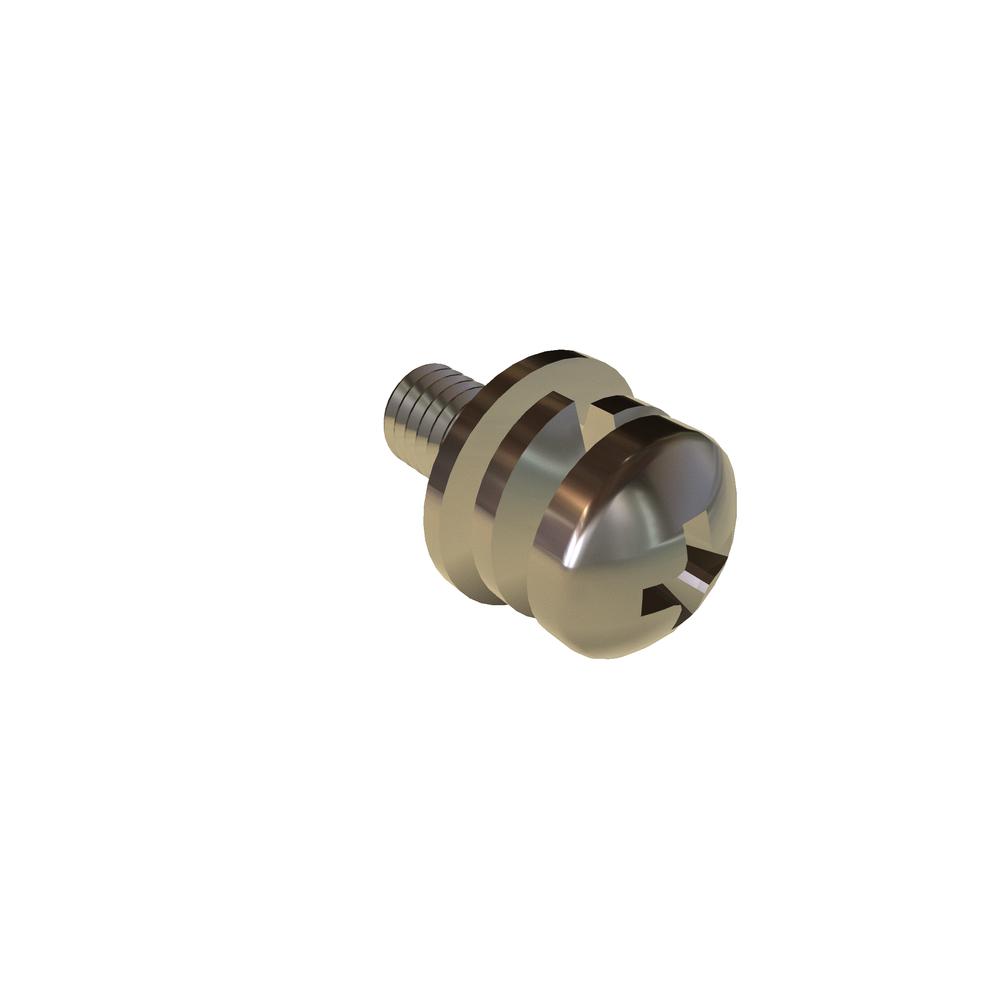

Image for reference purposes only. Actual product may vary.
.3C8PPSS
M3-.5 X 8 PH PAN DBL SEM SL/FW SST
Alternate Codes: N/A
RoHS. JIS 1188B #2 DRIVE
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.437 | $0.230 | $0.182 | $0.168 | $0.141 | Larger Quantities |
In Stock
Maximum stock already in cart
| Length | 8mm |
| Thread Size | M3x0.5 |
| Finish | Plain |
| Brand | VARIED |
| Recess Diameter | 2.90 mm |
| Washer Type | Split Lock Washer and Flat Washer |
| Drive Type | Phillips |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Pan |
| Lock Washer Outside Diameter (Min.) | 5.49 mm |
| Lock Washer Outside Diameter (Max.) | 5.73 mm |
| Drive Size | 1 |
| Penetration Depth (Min.) | 1.40 mm |
| Penetration Depth (Max.) | 1.80 mm |
| Head Radius (Min.) | 5.00 mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.20 mm |
| Lock Washer Thickness (Min.) | 1.02 mm |
| Flat Washer Thickness (Min.) | 1.20 mm |
| Flat Washer Thickness (Max.) | 0.80 mm |
| Flat Washer Outside Diameter (Min.) | 10.00 mm |
| Flat Washer Outside Diameter Max | 9.64 mm |
| Lock Washer Inside Diameter (Min.) | 2.69 mm |
| Lock Washer Inside Diameter (Max.) | 2.84 mm |
| Lock Washer Width (Min.) | 1.40 mm |
