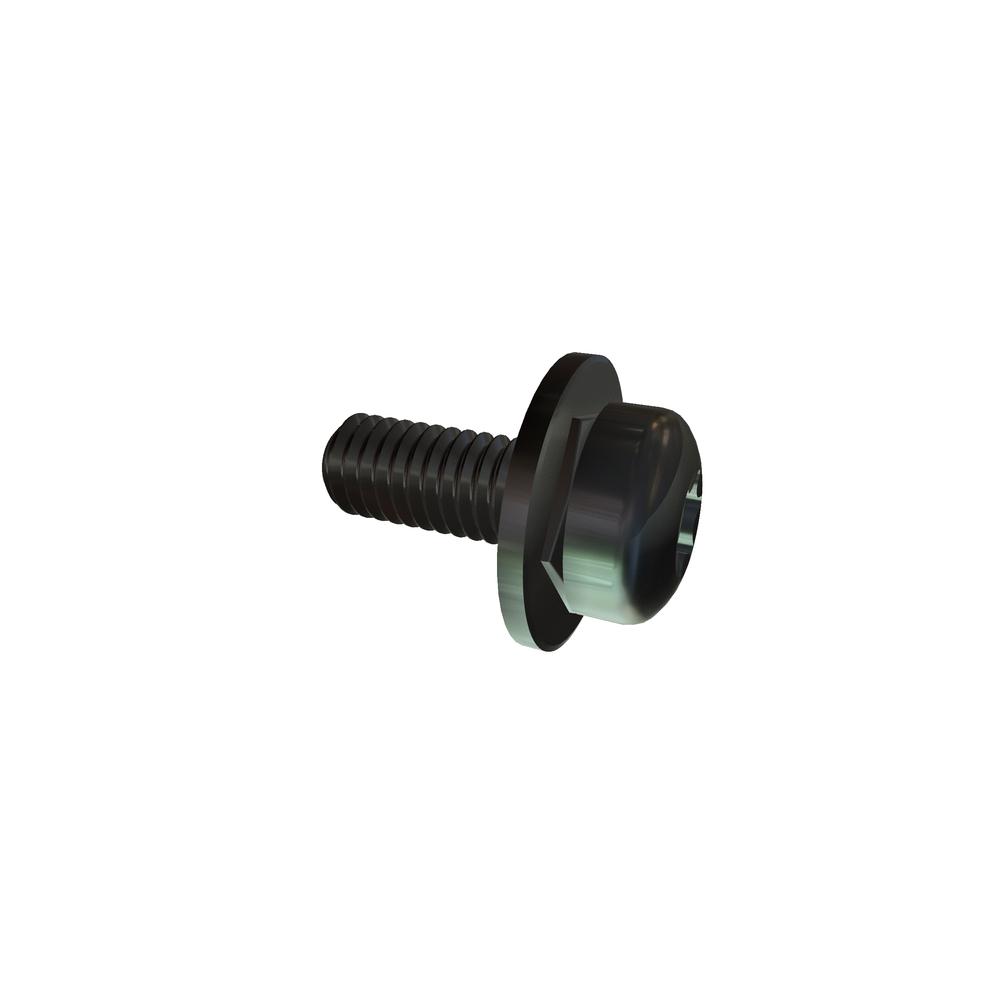

Image for reference purposes only. Actual product may vary.
.3C8XPC/410
M3-.5 X 8 TORX PAN CREST CUP SEMS 410SST
Alternate Codes: N/A
M3-.5 X 8 Torx Drive Pan Head Crest Cup Sems 410 Stainless Steel RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 8mm |
| Thread Size | M3x0.5 |
| Finish | Plain |
| Brand | VARIED |
| Recess Diameter | 2.74 mm |
| Washer Type | Crest Cup Washer |
| Drive Type | Torx |
| Material | 410 Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 3.00 mm |
| Head Type | Pan |
| Lock Washer Outside Diameter (Max.) | 6.35 mm |
| Drive Size | T10 |
| Penetration Depth (Min.) | 1.01 mm |
| Penetration Depth (Max.) | 1.27 mm |
| Head Radius (Min.) | 5.00 mm |
| RoHS | Compliant |
| Meets (Standard) | ISO 14583 |
| Head Diameter (Max.) | 5.60 mm |
| Head Diameter (Min.) | 5.30 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.26 mm |
