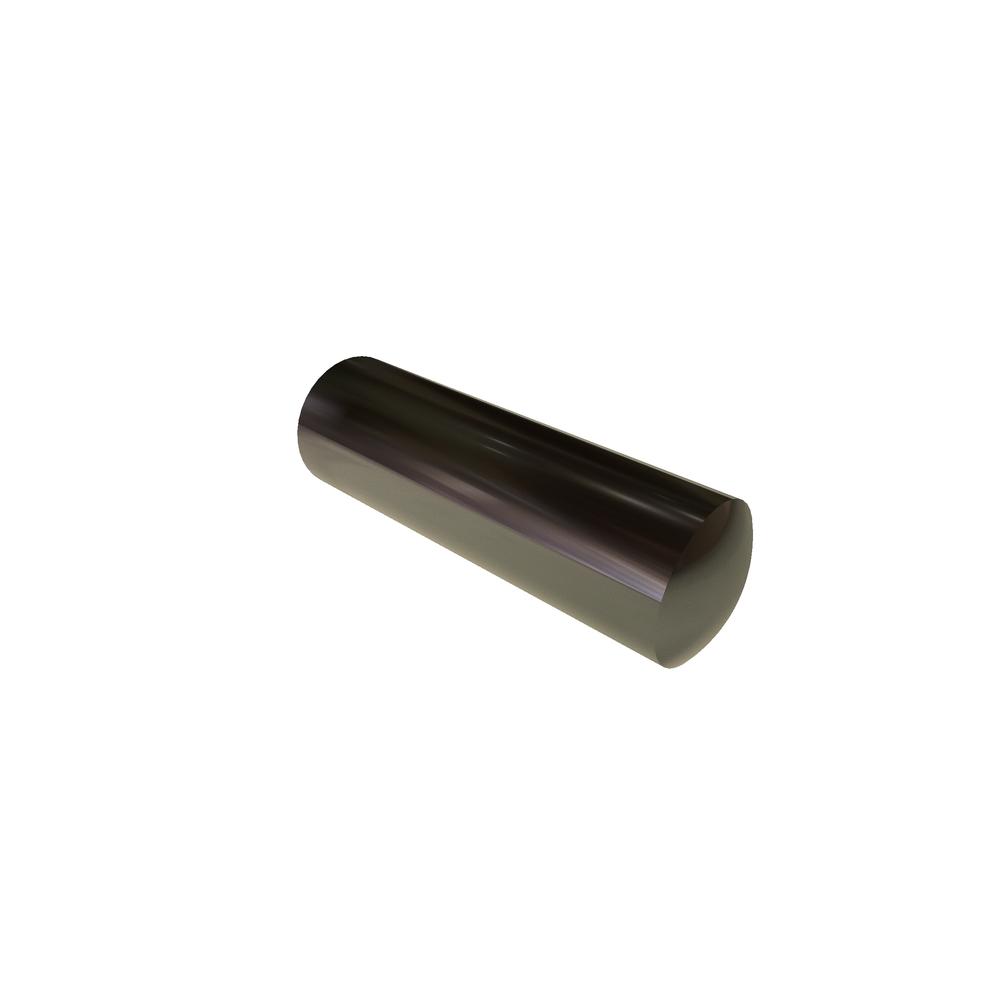

M3 X 10 DOWEL PIN DIN7-m6 316SST RoHS
.3R10DOW3/M6
| Item Id | .3R10DOW3/M6 |
| Description | M3 X 10 DOWEL PIN DIN7-m6 316SST RoHS |
| Alternate Codes | .3R10DOW3 |
| Extended Description | """length of pin does not include the crowns, only the length that conforms to the diameter""" |
| Packaging | EA |
| Additional Industry Cross Reference | DIN7 93600A304 |
| Brand | VARIED |
| Corner radius | 0.30 mm |
| Heat Treat | Unhardened |
| Length | 10mm |
| Material | 316 Stainless Steel |
| Nominal Diameter | 3mm |
| Pin Diameter (Max.) | 3.008mm |
| Pin Diameter (Min.) | 3.002mm |
| RoHS | Compliant |
| Tolerance | 0.48 0.08 mm |
| Tolerance | m6 |
| Type | Press Fit |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
