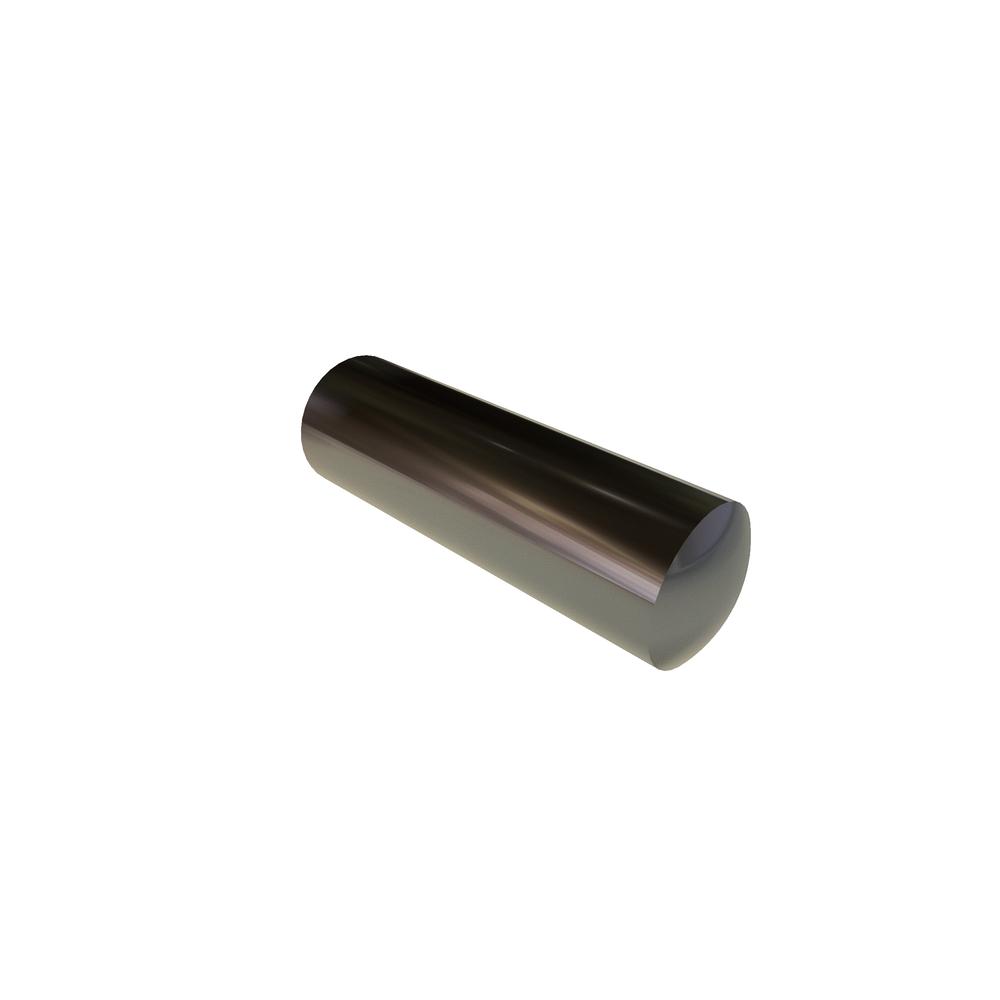

M3 X 10 DOWEL PIN ISO2338-m6 SST RoHS
.3R10DOWS/M6
| Item Id | .3R10DOWS/M6 |
| Description | M3 X 10 DOWEL PIN ISO2338-m6 SST RoHS |
| Extended Description | flat ends; measurement is overall length of pin |
| Packaging | EA |
| Additional Industry Cross Reference | ISO2338 91585A351 |
| Brand | VARIED |
| Corner radius | 0.30 mm |
| Heat Treat | Unhardened |
| Length | 10mm |
| Material | 300 Stainless Steel |
| Nominal Diameter | 3mm |
| Pin Diameter (Max.) | 3.008mm |
| Pin Diameter (Min.) | 3.002mm |
| Point Diameter | 2.9 mm |
| RoHS | Compliant |
| Tolerance | 90 2 Position Oval |
| Tolerance | m6 |
| Type | Press Fit |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
