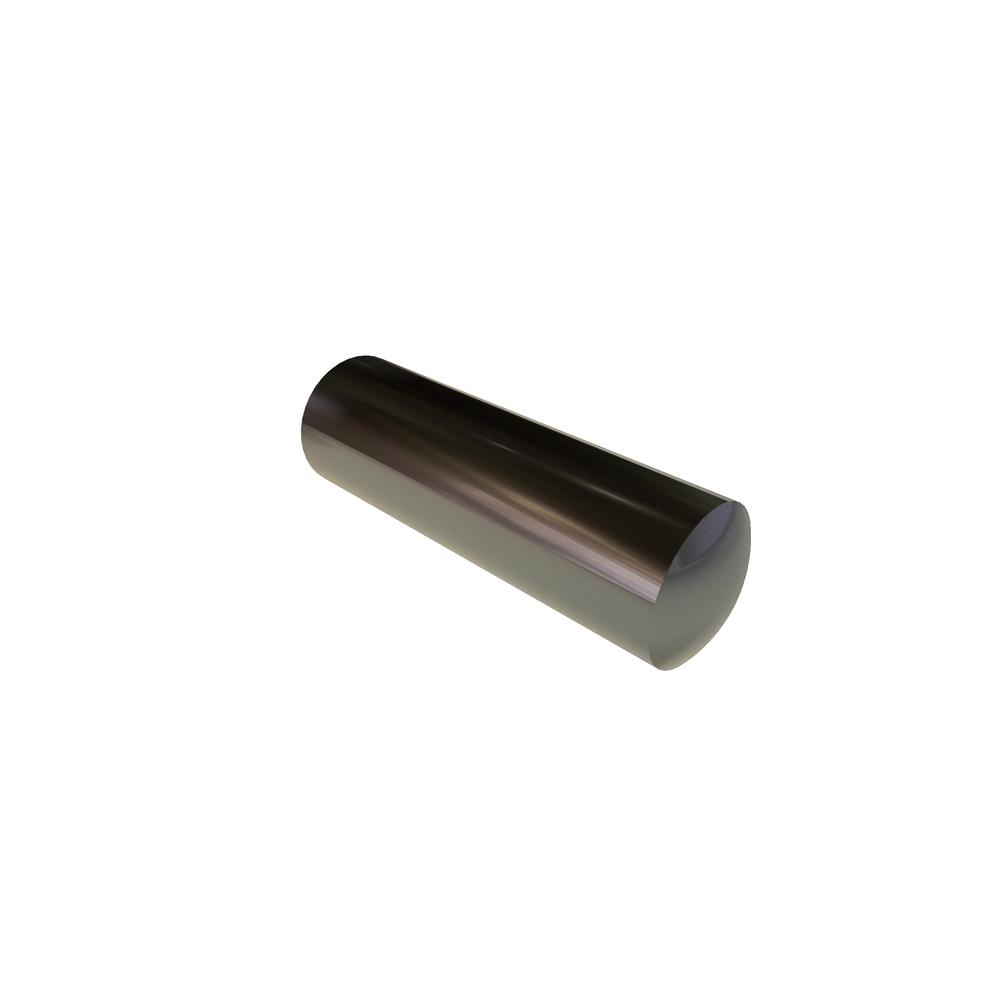

M3 X 12 DOWEL PIN DIN7-m6 sst RoHS
.3R12DOWS/M6
Item Id | .3R12DOWS/M6 |
Description | M3 X 12 DOWEL PIN DIN7-m6 sst RoHS |
Alternate Codes | 91585A371 |
Extended Description | "length of pin does not include the crowns, only the length that conforms to the diameter" |
Packaging | EA |
Additional Industry Cross Reference | DIN7 91585A371 |
Brand | VARIED |
Corner radius | 0.30 mm |
Heat Treat | Unhardened |
Length | 12mm |
Material | 300 Stainless Steel |
Nominal Diameter | 3mm |
Pin Diameter (Max.) | 3.008mm |
Pin Diameter (Min.) | 3.002mm |
Point Diameter | 2.9 mm |
RoHS | Compliant |
Tolerance | 0.094 0.001in |
Tolerance | m6 |
Type | Press Fit |
Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
