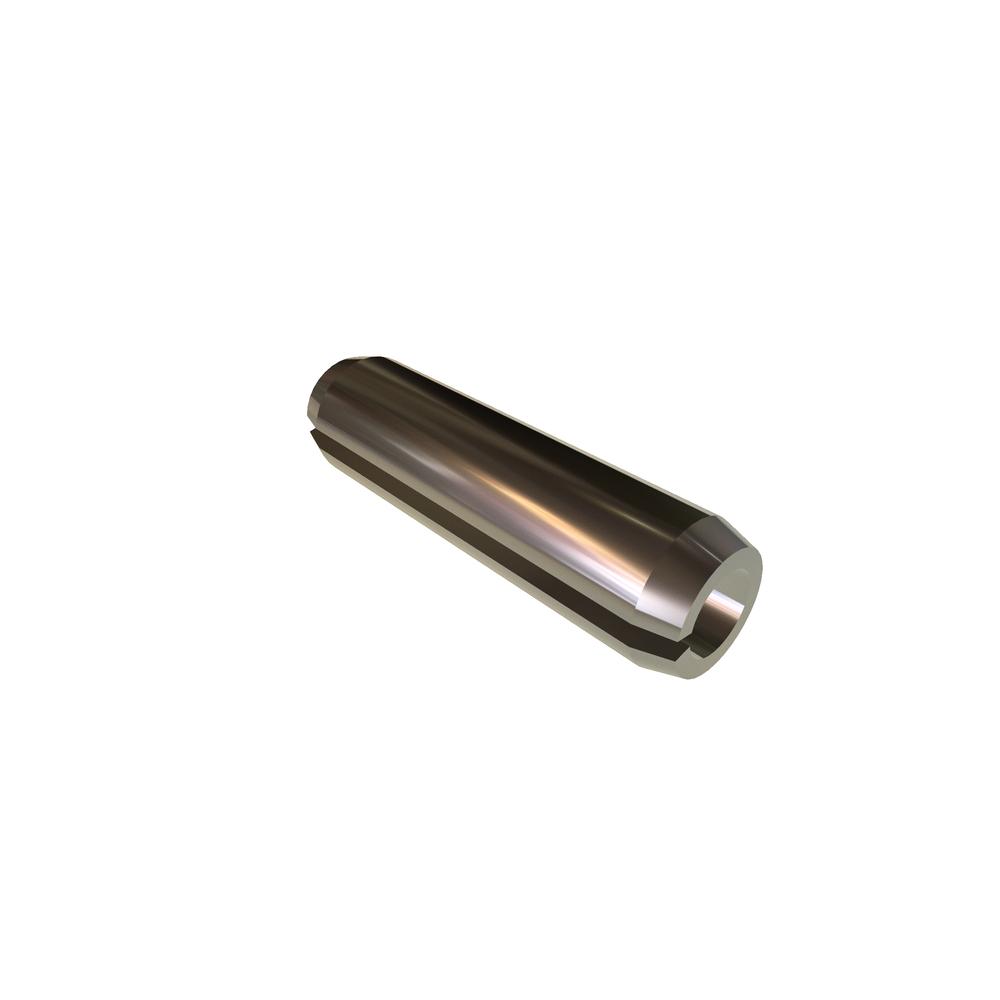

Image for reference purposes only. Actual product may vary.
.3R12ROLS
M3 X 12 ROLL PIN SST RoHS
Alternate Codes: N/A
M3 X 12 Roll Pin Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs |
|---|
| $0.368 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Nominal Diameter | 3 mm |
| Finish | Plain |
| Brand | VARIED |
| Material | 300 Stainless Steel |
| Units | Metric |
| Pin Diameter (Min.) | 3.14 mm |
| Pin Diameter (Max.) | 3.25 mm |
| Chamfer Length (Min.) | 0.2 mm |
| Chamfer Length (Max.) | 1 mm |
| Recommended Hole Size (Min.) | 3 mm |
| Recommended Hole Size (Max.) | 3.1 mm |
| Wall Thickness | 0.65 mm |
| Chamfer Diameter | 2.9 mm |
| RoHS | Compliant |
