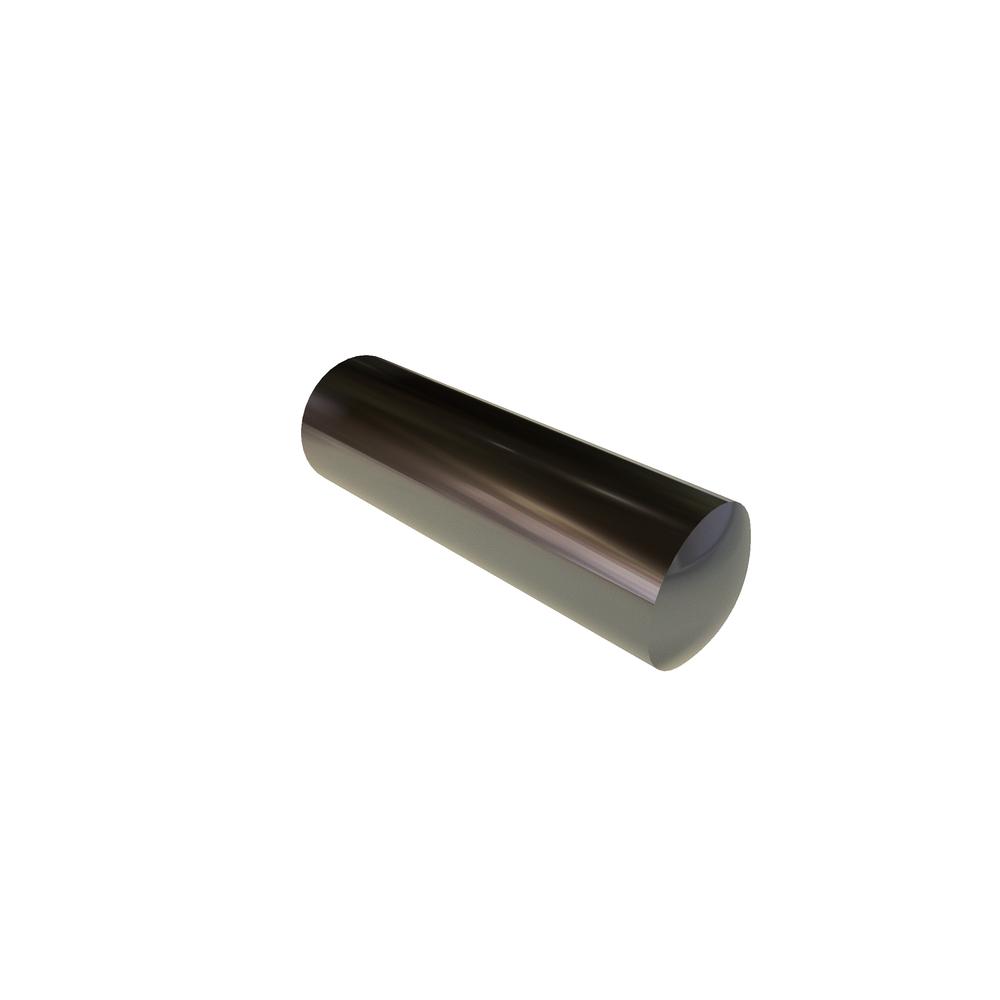

M3 X 14 DOWEL PIN ISO2338-m6 SST RoHS

.3R14DOWS/M6

Item Id.3R14DOWS/M6
DescriptionM3 X 14 DOWEL PIN ISO2338-m6 SST RoHS
Alternate Codes91585A374
Extended Descriptionflat ends; measurement is overall length of pin
PackagingEA
Additional Industry Cross ReferenceISO2338 91585A374
BrandVARIED
Corner radius0.30 mm
Heat TreatUnhardened
Length14mm
Material303 Stainless Steel
Nominal Diameter3mm
Pin Diameter (Max.)3.008mm
Pin Diameter (Min.)3.002mm
Point Diameter2.9 mm
RoHSCompliant
Tolerance0.312 0.001in
Tolerancem6
TypePress Fit
UnitsMetric
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
