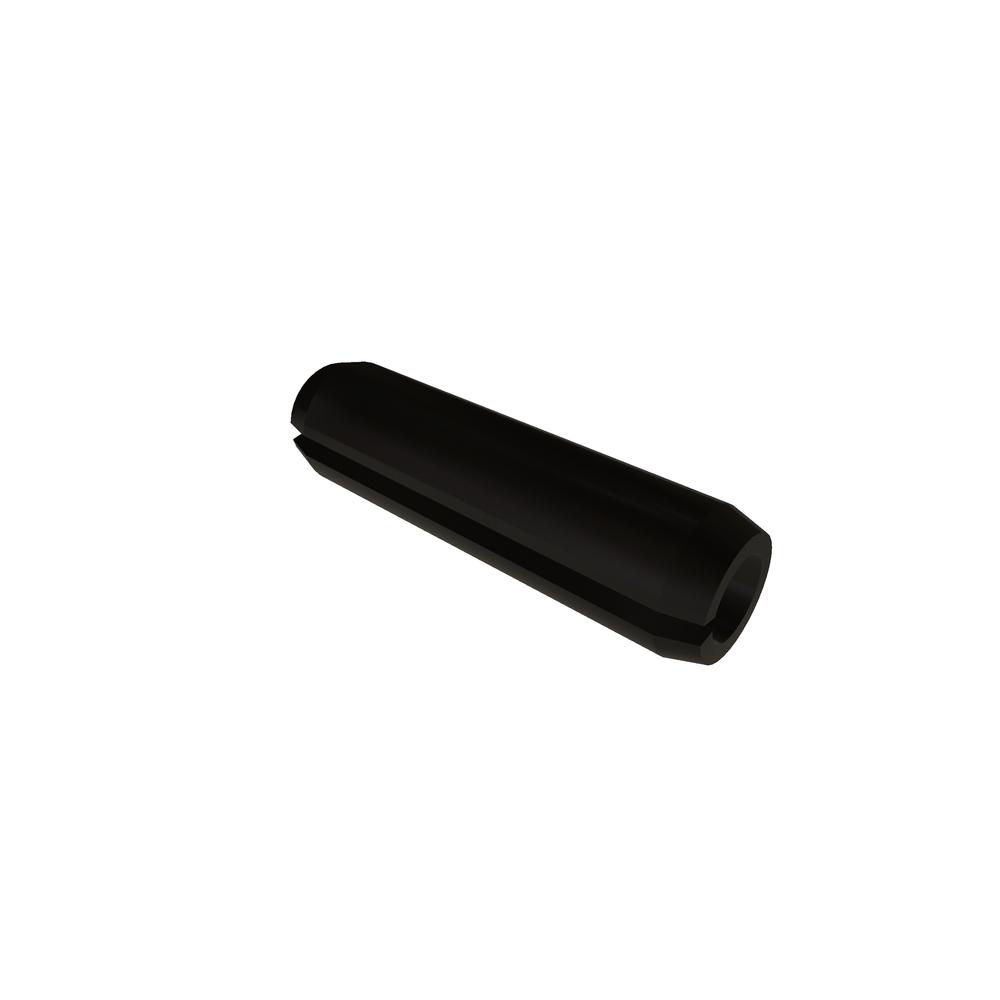

M3 X 16 ROLL PIN ALLOY RoHS
.3R16ROLA
| Item Id | .3R16ROLA |
| Description | M3 X 16 ROLL PIN ALLOY RoHS |
| Alternate Codes | 91611A157 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 91611A157 |
| Brand | VARIED |
| Chamfer Diameter | 2.9 mm |
| Chamfer Length (Max.) | 1 mm |
| Chamfer Length (Min.) | 0.2 mm |
| Finish | Plain |
| Material | Alloy Steel |
| Nominal Diameter | 3 mm |
| Pin Diameter (Max.) | 3.25 mm |
| Pin Diameter (Min.) | 3.14 mm |
| Recommended Hole Size (Max.) | 3.1 mm |
| Recommended Hole Size (Min.) | 3 mm |
| Units | Metric |
| Wall Thickness | 0.65 mm |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
