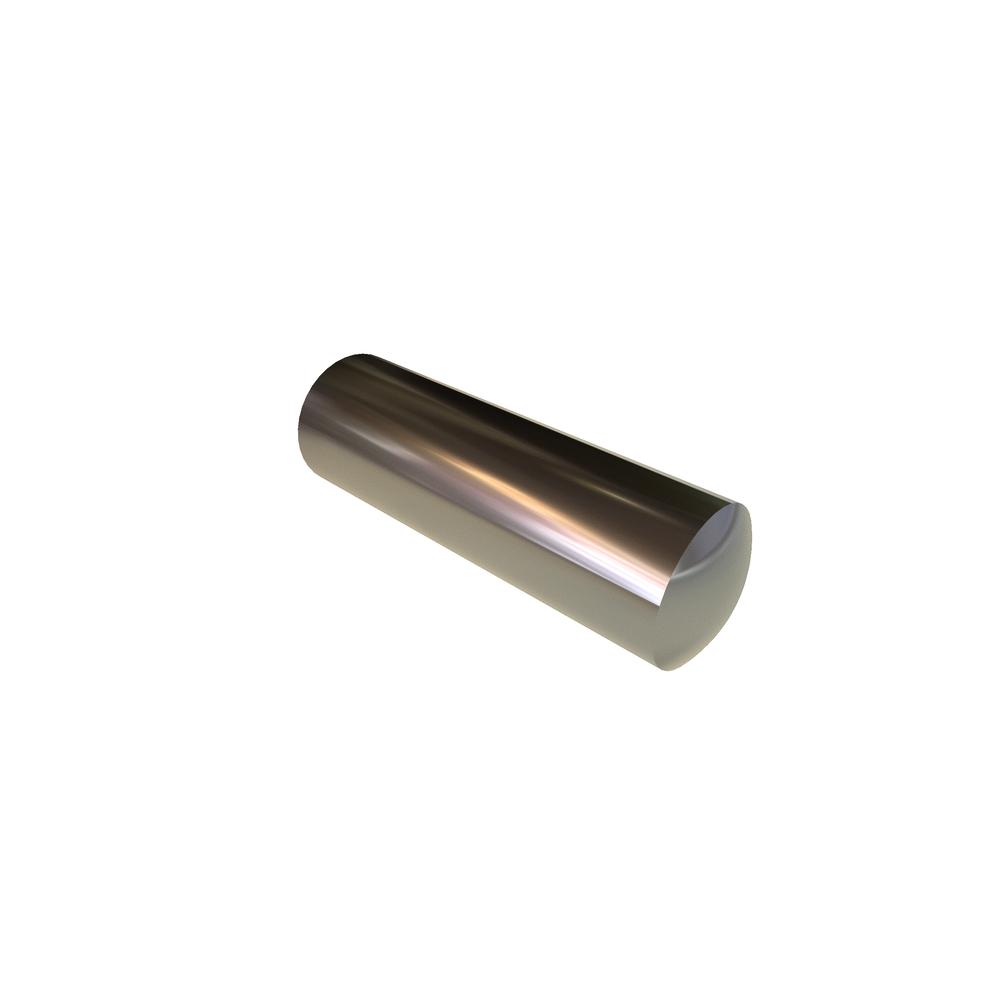

M3 X 8 DOWEL PIN SST RoHS
.3R8DOWS
| Item Id | .3R8DOWS |
| Description | M3 X 8 DOWEL PIN ISO2338-h8 SST RoHS |
| Alternate Codes | 91585A054 |
| Extended Description | flat ends; measurement is overall length of pin |
| Packaging | EA |
| Additional Industry Cross Reference | ISO238 |
| Brand | VARIED |
| Corner radius | 0.30 mm |
| Heat Treat | Unhardened |
| Length | 8mm |
| Material | 300 Stainless Steel |
| Nominal Diameter | 3mm |
| Pin Diameter (Max.) | 3.000mm |
| Pin Diameter (Min.) | 2.982mm |
| Point Diameter | 2.9 mm |
| RoHS | Compliant |
| Tolerance | h8 |
| Type | Slip Fit |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
