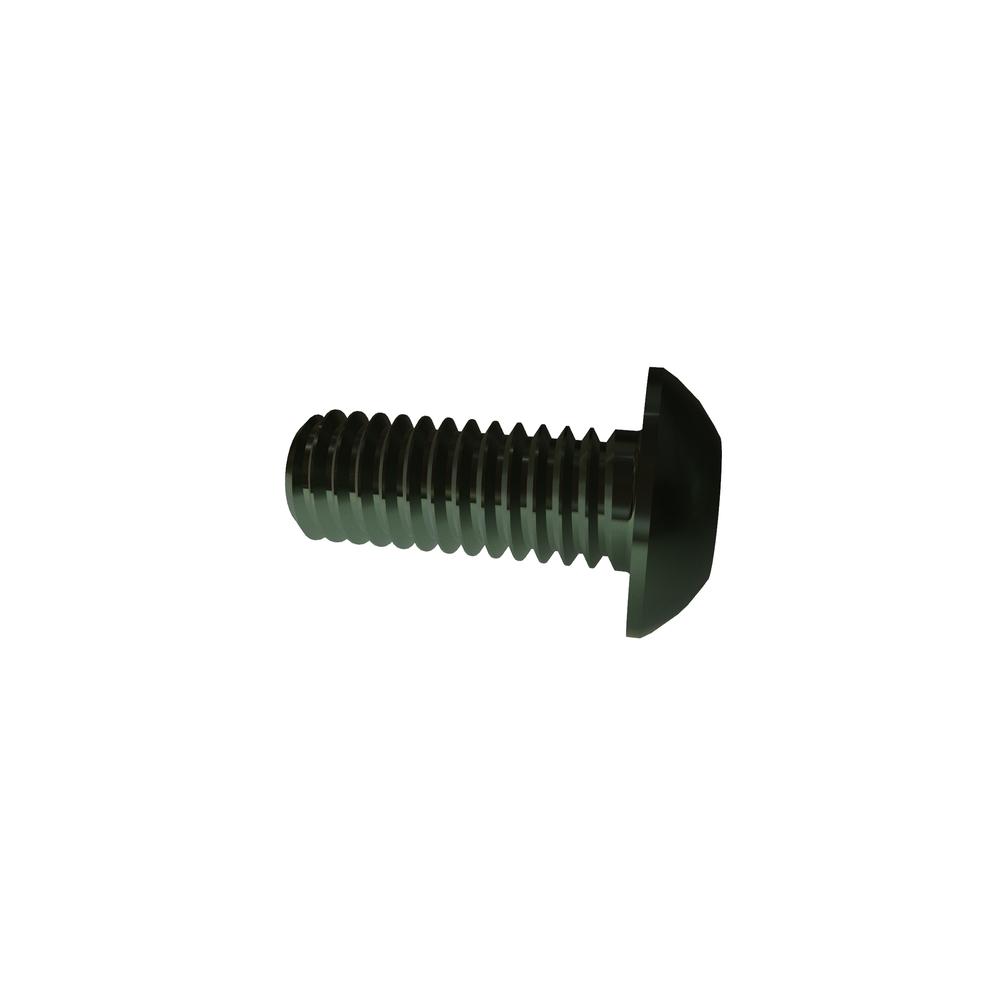

M4-.7 X 10 BUT SOC ALLOY ZN CR3
.4C10BHCAR
| Item Id | .4C10BHCAR |
| Description | M4-.7 X 10 BUT SOC ALLOY ZN RoHS CR3 |
| Extended Description | |
| Packaging | EA |
| Brand | VARIED |
| Drive Type | Hex Socket |
| Fillet Transition Diameter (Max.) | 4.70 mm |
| Fillet Transition Diameter (Min.) | 4.40 mm |
| Finish | Zinc Clear |
| Finish | Zinc Cr3 |
| Head Diameter (Max.) | 7.60 mm |
| Head Diameter (Min.) | 7.24 mm |
| Head Height (Max.) | 2.20 mm |
| Head Height (Min.) | 1.95 mm |
| Head Side Height (Ref.) | 0.38 mm |
| Head Type | Button |
| Hex Socket Size | 2.50 mm |
| Key Engagement | 1.30 mm |
| Length | 10mm |
| Material | Alloy Steel |
| Meets (Standard) | ASME B18.3.4M |
| Nominal Diameter | 4 mm |
| RoHS | Compliant |
| Thread Size | M4x0.7 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
