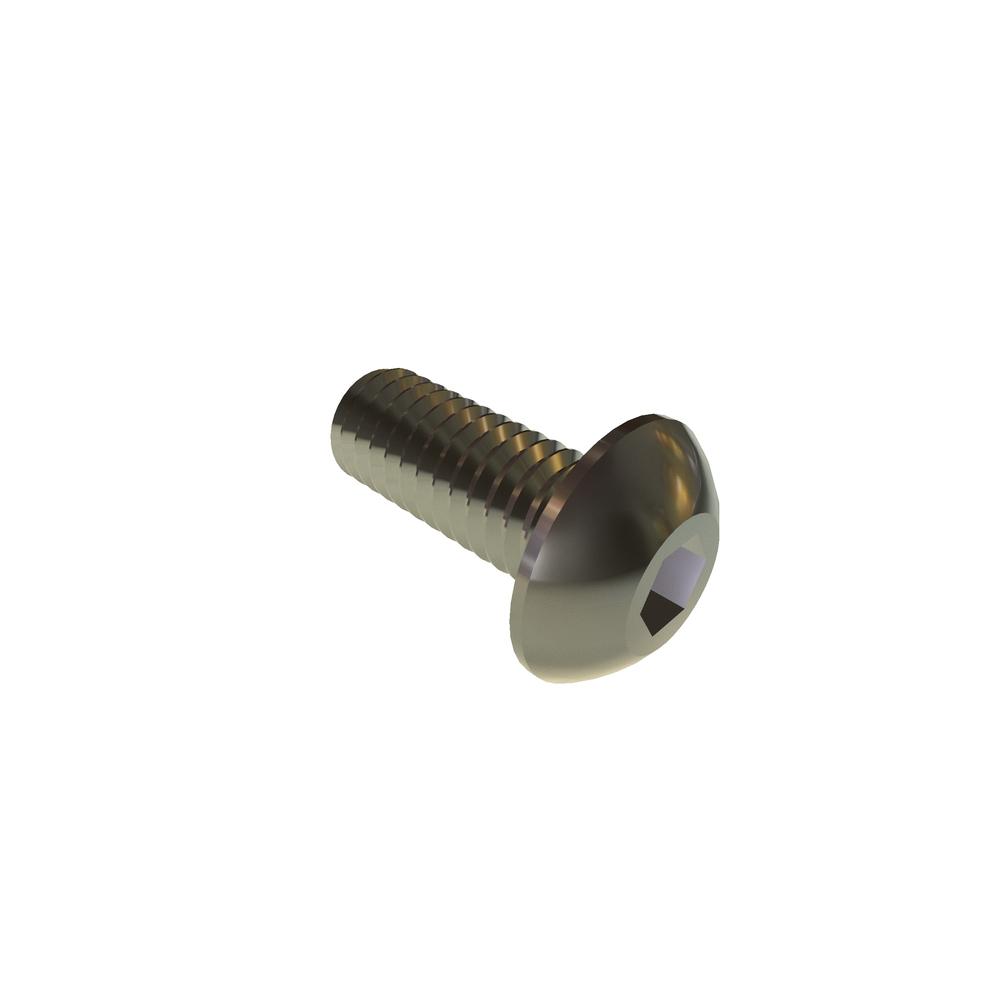

Image for reference purposes only. Actual product may vary.
.4C10BHCS/P
M4-.7 X 10 BUT SOC PATCH SST RoHS
Alternate Codes: N/A
M4-.7 X 10 Button Socket ISO 7380 Patch Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.476 | $0.250 | $0.198 | $0.183 | $0.153 | Larger Quantities |
In Stock
Maximum stock already in cart
| Length | 10mm |
| Thread Size | M4-.7 |
| Finish | Plain |
| Drive Type | Hex Socket |
| Head Type | Button |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 4 mm |
| Fillet Transition Diameter (Min.) | 4.40 mm |
| Fillet Transition Diameter (Max.) | 4.70 mm |
| Head Side Height (Ref.) | 0.38 mm |
| Self Locking Type | Patchlock |
| Brand | VARIED |
| Key Engagement (Min.) | 1.30 mm |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.3 |
| Head Diameter (Max.) | 7.60 mm |
| Head Diameter (Min.) | 7.24 mm |
| Head Height (Max.) | 2.20 mm |
| Head Height (Min.) | 1.95 mm |
| Hex Socket Size | 2.50 mm |
