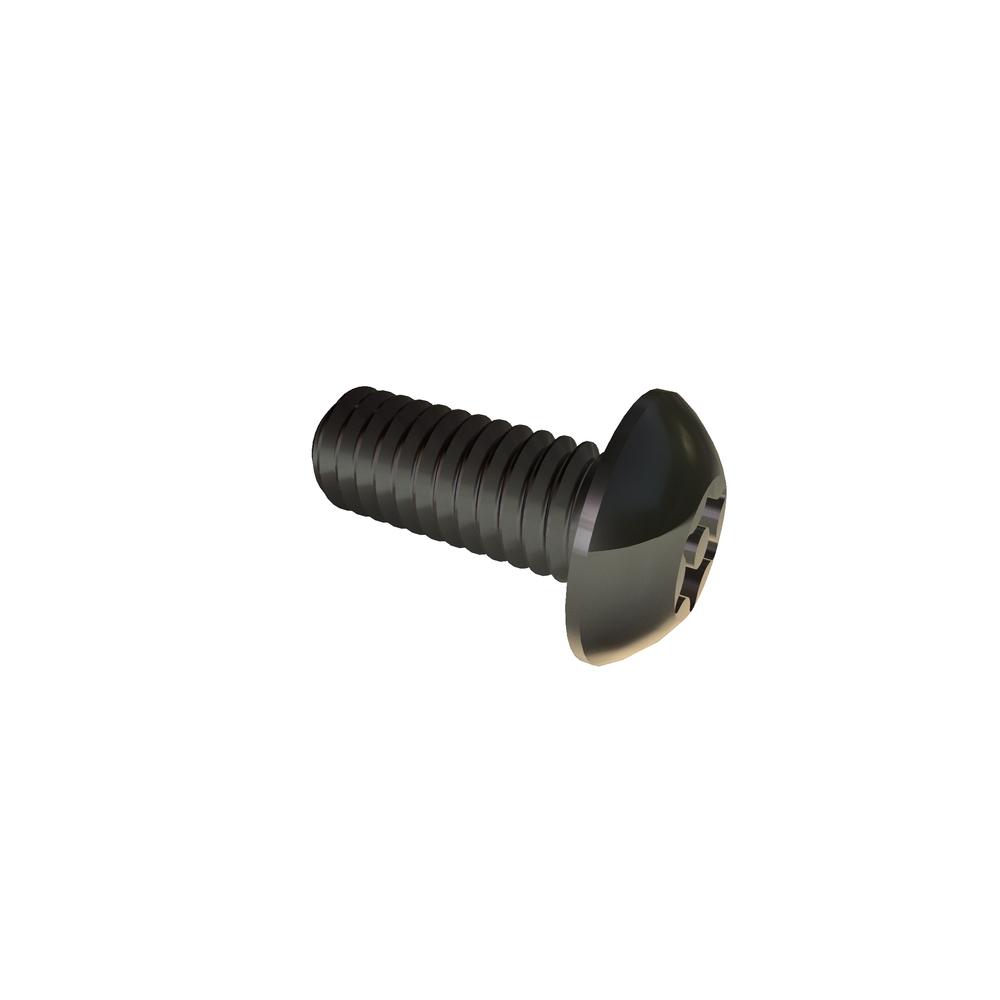

Image for reference purposes only. Actual product may vary.
.4C10BHXS/T
M4-.07 X 10 BUT TORX T-R SST RoHS
Alternate Codes: N/A
M4-.07 X 10 Button Head Torx Tamperproof Stainless Steel RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 10mm |
| Thread Size | M4x0.7 |
| Finish | Plain |
| Brand | VARIED |
| Drive Type | Torx |
| Head Type | Button |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 4.00 mm |
| Fillet Transition Diameter (Min.) | 6.50 mm |
| Fillet Transition Diameter (Max.) | 6.80 mm |
| Key Engagement | 1.30 mm |
| Head Side Height | 0.38 mm |
| Torx Socket Size | 3.95 mm |
| RoHS | Compliant |
| Head Diameter (Max.) | 7.60 mm |
| Head Diameter (Min.) | 7.24 mm |
| Head Height (Max.) | 2.20 mm |
| Head Height (Min.) | 1.95 mm |
