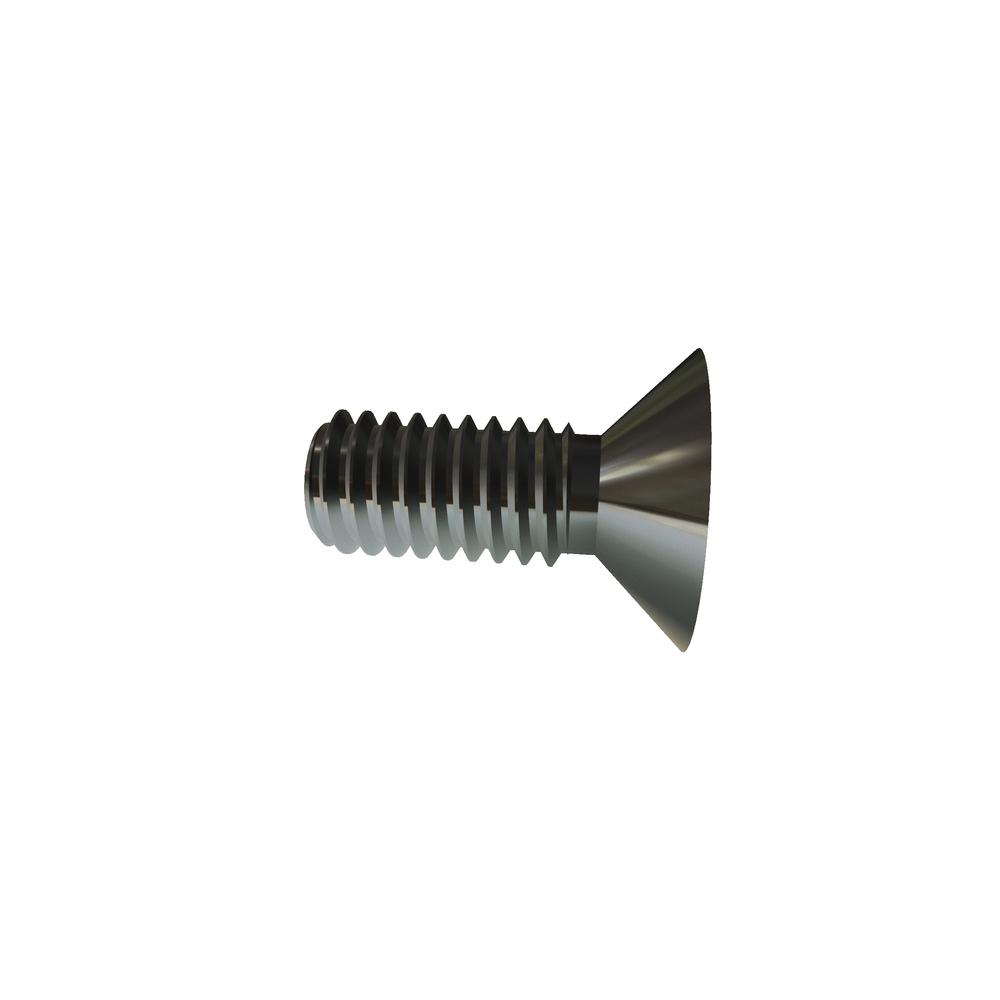

Image for reference purposes only. Actual product may vary.
.4C10FHCS/P
M4-.7 X 10 FLAT SOC PATCH SST RoHS
Alternate Codes: N/A
M4-.7 X 10 Flat Socket DIN7991 Patch Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs | Call For |
|---|---|---|---|---|---|
| $0.604 | $0.332 | $0.277 | $0.237 | $0.196 | Larger Quantities |
In Stock
Maximum stock already in cart
| Nominal Diameter | 4.00 mm |
| Length | 8.0mm |
| Thread Size | M4-.7 |
| Finish | Plain |
| Drive Type | Hex Socket |
| Head Type | Flat |
| Material | Stainless Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Drive Size | 2.5 mm |
| Key Engagement | 1.8mm |
| Body Diameter | 4.00 mm |
| Self Locking Type | Patchlock |
| Brand | VARIED |
| RoHS | Compliant |
| Meets (Standard) | ASME/ANSl B18.3.1M |
| Head Diameter (Max.) | 8.00 mm |
| Head Diameter (Min.) | 7.64 mm |
| Head Height (Max.) | 2.30 mm |
| Hex Socket Size | 2.5 mm |
