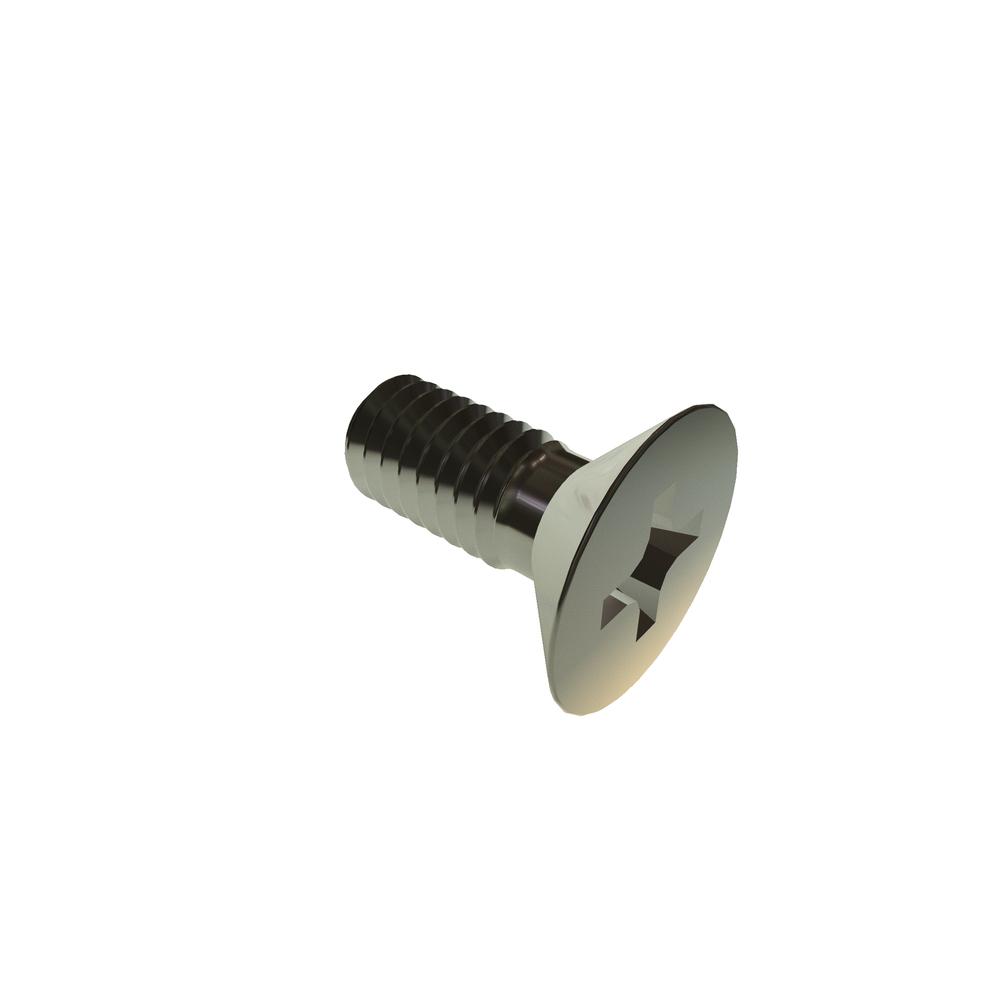

Image for reference purposes only. Actual product may vary.
.4C10PFMS/P
M4-.7 X 10 PHIL FLAT PATCH SST RoHS
Alternate Codes: N/A
M4-.7 X 10 Phillips Flat Head Patch Stainless Steel RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs |
|---|---|---|
| $0.673 | $0.428 | $0.393 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 10mm |
| Thread Size | M4x0.7 |
| Finish | Plain |
| Drive Type | Phillips |
| Locking Element | Patchlock |
| Material | Stainless Steel |
| Brand | VARIED |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 4.00 mm |
| Head Type | Flat |
| Drive Size | 2 |
| Recess Diameter | 4.6 mm |
| Head Height | 2.70 mm |
| Recess Depth | 2.65 mm |
| Recess Width | 0.96 mm |
| Additional Industry Cross Reference | 90382A267 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 8.40 mm |
| Head Diameter (Min.) | 8.04 mm |
