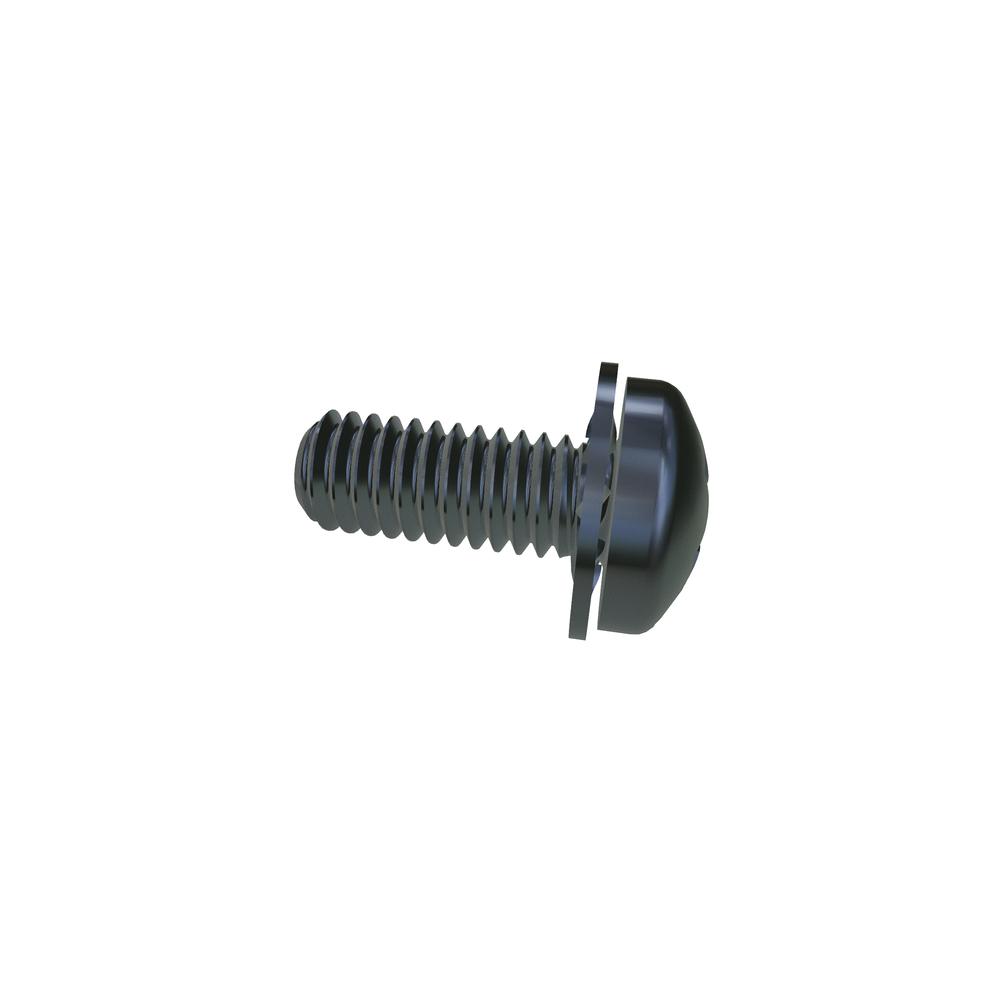

Image for reference purposes only. Actual product may vary.
.4C10PPIZR
M4-.7 X 10 PHIL PAN INT SEMS STL ZN ROHS
Alternate Codes: N/A
M4-.7 X 10 Phillips Pan Head Internal Sems Steel Zinc Plated RoHS3
Pricing per Unit
| 1-99 pcs | 100-249 pcs |
|---|---|
| $0.489 | $0.269 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 10mm |
| Thread Size | M4x0.7 |
| Finish | Zinc Clear |
| Brand | VARIED |
| Recess Diameter | 4.40 mm |
| Washer Type | Internal Tooth Lock Washer |
| Drive Type | Phillips |
| Material | Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 4.00 mm |
| Head Type | Pan |
| Lock Washer Thickness (Max.) | 0.60 mm |
| Lock Washer Outside Diameter (Min.) | 8.25 mm |
| Lock Washer Outside Diameter (Max.) | 8.75 mm |
| Drive Size | 2 |
| Penetration Depth (Min.) | 1.90 mm |
| Penetration Depth (Max.) | 2.40 mm |
| Head Radius (Min.) | 6.50 mm |
| Additional Industry Cross Reference | 90403A863 |
| RoHS | Compliant |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 8.00 mm |
| Head Diameter (Min.) | 7.60 mm |
| Head Height (Max.) | 3.10 mm |
| Head Height (Min.) | 2.80 mm |
| Lock Washer Thickness (Min.) | 0.45 mm |
