  • Item Id: .4C10PPM3

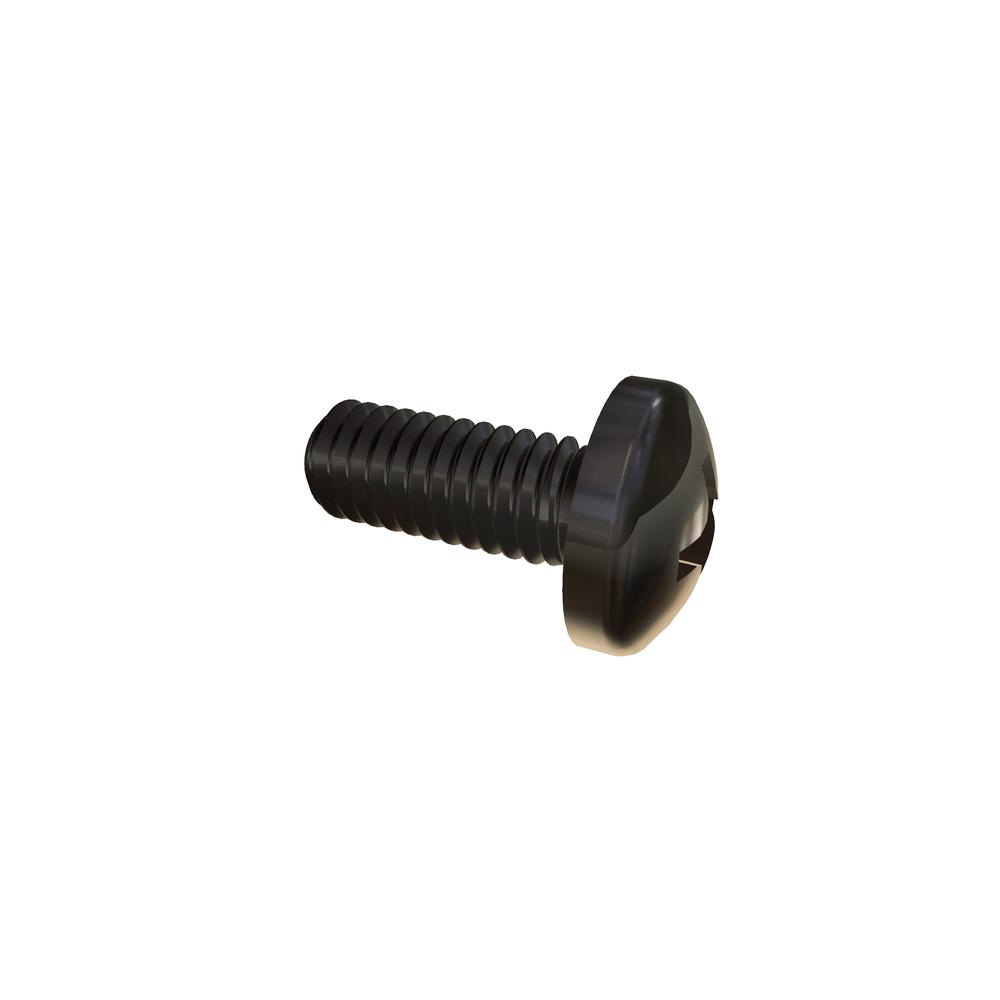

  • Description: M4-.7 X 10 PHIL PAN 316 SST
  • Alternate Codes: 90116A207
  • Extended Description:
  • Quantity on Hand: 0
  • Packaging: EA
  • Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
  • Additional Industry Cross Reference90116A207
    Body Diameter (Max.)4.00 mm
    Body Diameter (Min.)3.43 mm
    BrandVARIED
    Drive Size2
    Drive TypePhillips
    FinishPlain
    Head Diameter (Max.)8.00 mm
    Head Diameter (Min.)7.64 mm
    Head Height (Max.)3.10 mm
    Head Height (Min.)2.92 mm
    Head Radius (Min.)6.50 mm
    Head TypePan
    Material316 Stainless Steel
    Meets (Standard)B18.6.7M
    Nominal Diameter4.00 mm
    Recess Depth (Max.)2.40 mm
    Recess Depth (Min.)1.90 mm
    Recess Diameter4.40 mm
    Thread SizeM4x0.7
    Thread TypeMetric Coarse
    UnitsMetric
