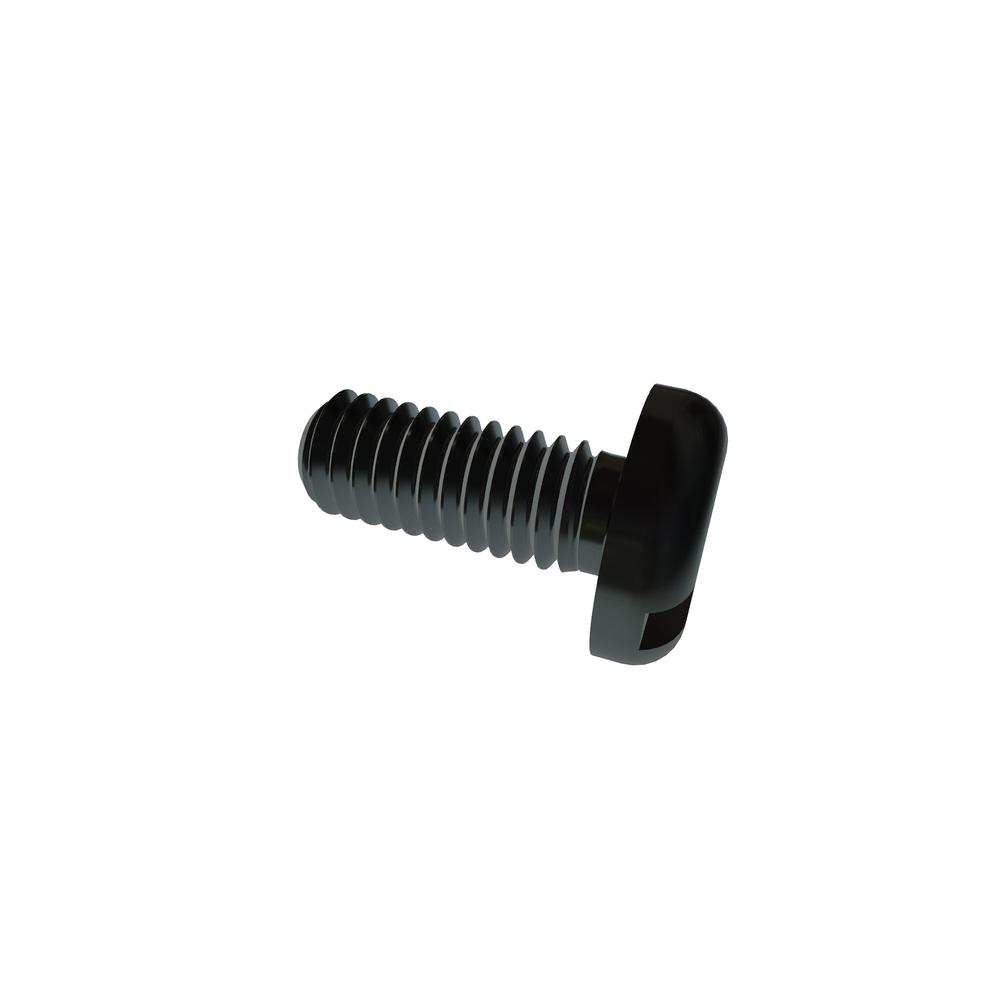

Image for reference purposes only. Actual product may vary.
.4C10SPMZR
M4-.7 X 10 SLOT PAN HD STL ZN CR3
Alternate Codes: N/A
M4-.7 X 10 Slot Pan Head Head Steel Zinc Plated RoHS3
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 10mm |
| Thread Size | M4x0.7 |
| Finish | Zinc Cr3 |
| Brand | VARIED |
| Drive Type | Slotted |
| Material | Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 4.00 mm |
| Head Type | Pan |
| Head Radius (Min.) | 1.60 mm |
| Slot Depth (Min.) | 1.00 mm |
| Slot Width (Min.) | 1.20 mm |
| Slot Width (Max.) | 1.50 mm |
| Body Diameter (Min.) | 3.43 mm |
| Additional Industry Cross Reference | 90353A213 |
| RoHS | Compliant |
| Meets (Standard) | B18.6.7M |
| Body Diameter (Max.) | 4.00 mm |
| Head Diameter (Max.) | 8.00 mm |
| Head Diameter (Min.) | 7.60 mm |
| Head Height (Max.) | 2.40 mm |
| Head Height (Min.) | 2.20 mm |
