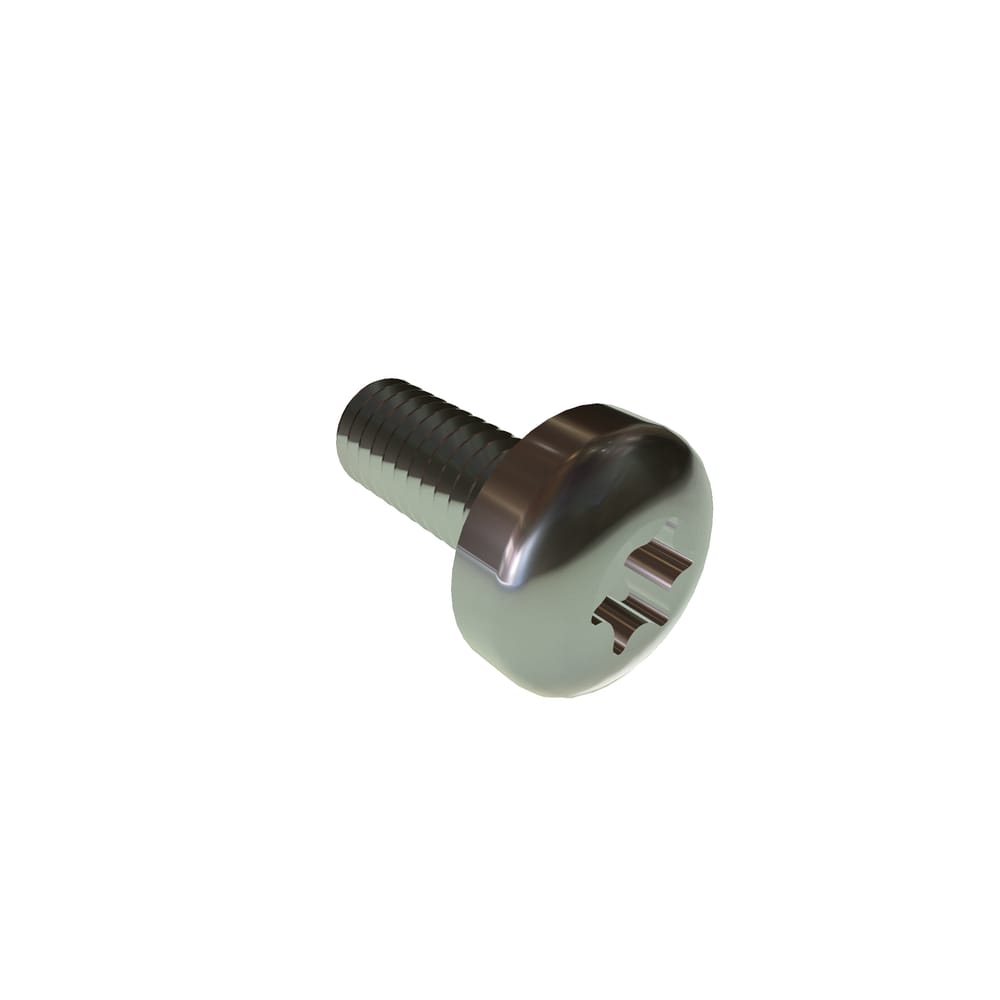

M4-.7 X 10 TORX PAN SST RoHS
.4C10XPMS
| Item Id | .4C10XPMS |
| Description | M4-.7 X 10 6-LOBE PAN SST RoHS |
| Alternate Codes | 90362A119 |
| Extended Description | ISO 14583 |
| Packaging | EA |
| Additional Industry Cross Reference | 90362A119 |
| Brand | VARIED |
| Drive Size | T20 |
| Drive Type | Torx |
| Finish | Plain |
| Head Diameter (Max.) | 8.00 mm |
| Head Diameter (Min.) | 7.64 mm |
| Head Height (Max.) | 3.10 mm |
| Head Height (Min.) | 2.92 mm |
| Head Radius (Min.) | 6.50 mm |
| Head Type | Pan |
| Length | 10mm |
| Material | Stainless Steel |
| Meets (Standard) | ISO 14583 |
| Nominal Diameter | 4.00 mm |
| Recess Depth (Max.) | 1.66 mm |
| Recess Depth (Min.) | 1.27 mm |
| Recess Diameter | 3.86 mm |
| RoHS | Compliant |
| Thread Size | M4x0.7 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
