Item Categories




  • Item Id: .4C12PPIS

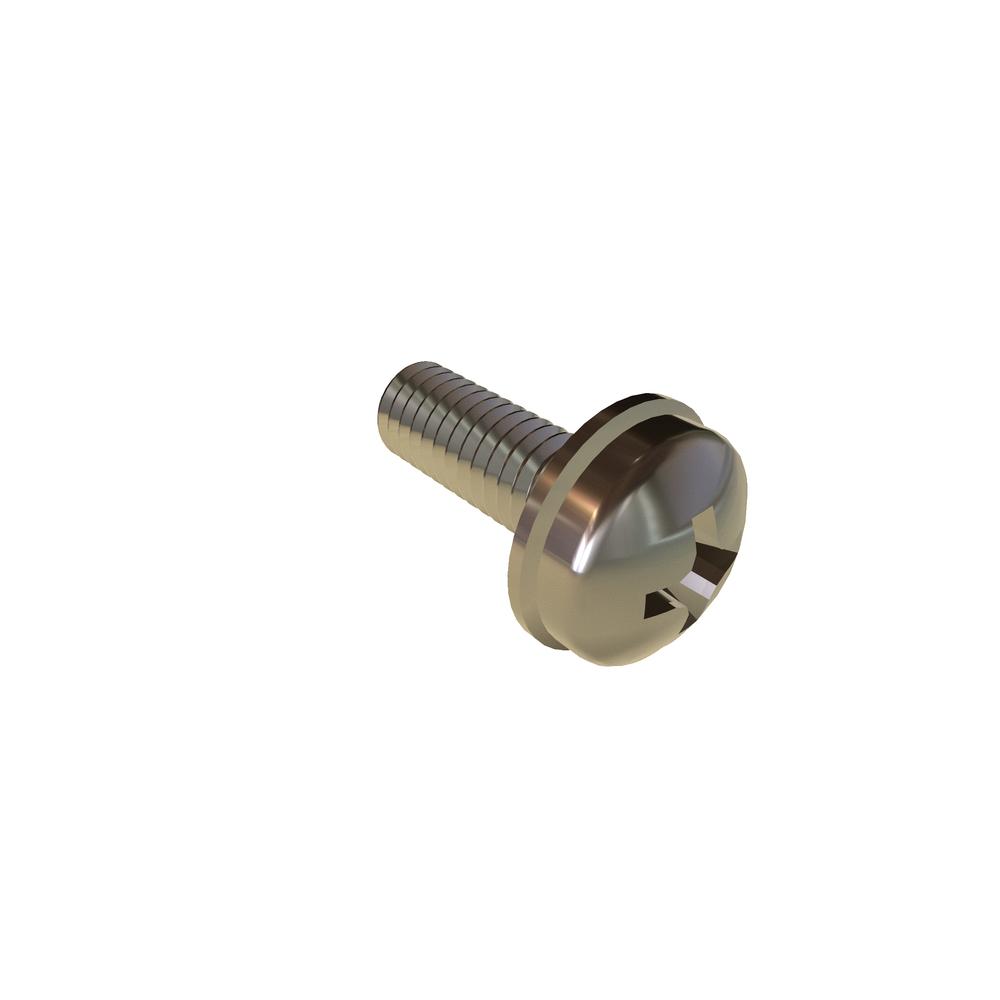

  • Description: M4-.7 X 12 PHIL PAN INT SEMS SST RoHS
  • Extended Description:
  • Packaging: EA
  • Please call your Olander Inside Sales Representative at (800) 538-1500 for pricing and availability details on this item. We are happy to assist you!
    • Additional Industry Cross Reference90317A171
    BrandVARIED
    Drive Size2
    Drive TypePhillips
    FinishPlain
    Head Diameter (Max.)8.00 mm
    Head Diameter (Min.)7.60 mm
    Head Height (Max.)3.10 mm
    Head Height (Min.)2.80 mm
    Head Radius (Min.)6.50 mm
    Head TypePan
    Lock Washer Outside Diameter (Max.)8.75 mm
    Lock Washer Outside Diameter (Min.)8.25 mm
    Lock Washer Thickness (Max.)0.60 mm
    Lock Washer Thickness (Min.)0.45 mm
    MaterialStainless Steel
    Meets (Standard)ASME B18.6.7M
    Nominal Diameter4.00 mm
    Penetration Depth (Max.)2.40 mm
    Penetration Depth (Min.)1.90 mm
    Recess Diameter4.40 mm
    RoHSCompliant
    Thread SizeM4x0.7
    Thread TypeMetric Coarse
    UnitsMetric
    Washer TypeInternal Tooth Lock Washer
