  • Item Id: .4C12PPQZR

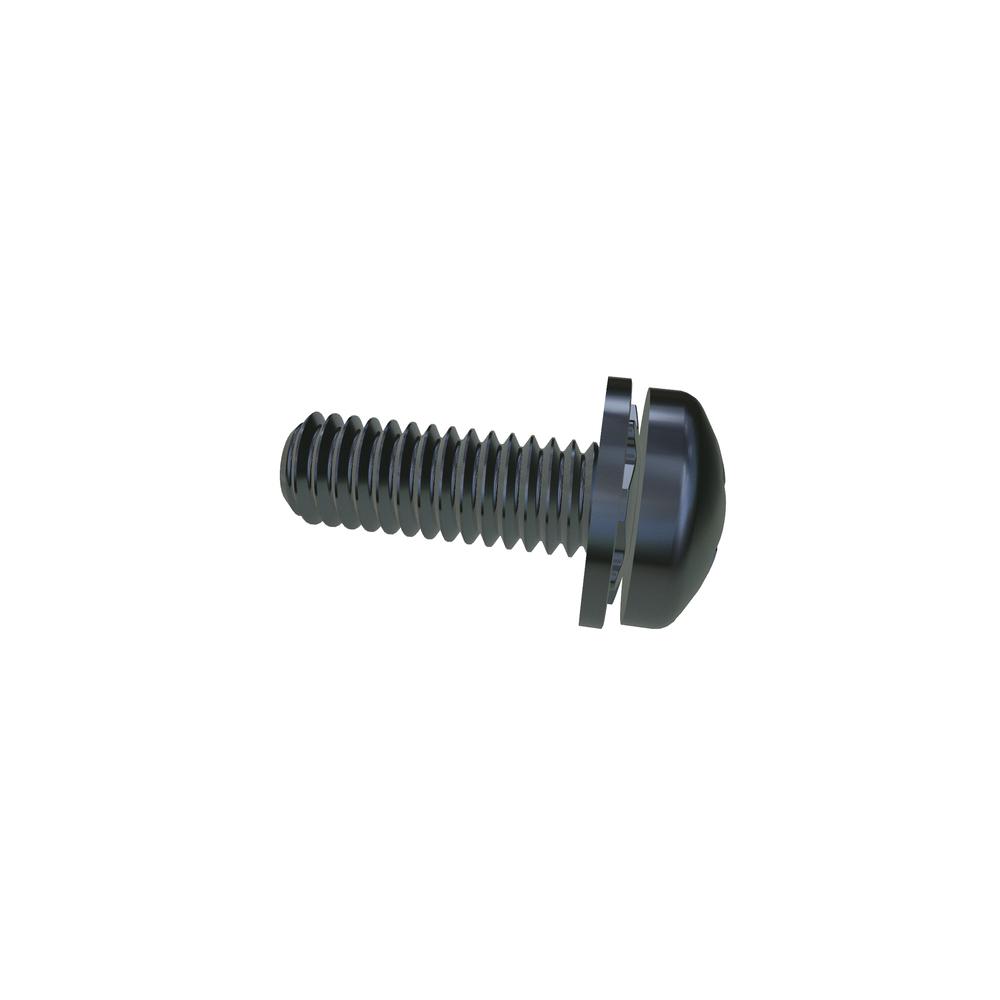

  • Description: M4-.7 X 12 PH PAN SQ CONE SEMS STL ZN
  • Quantity Discounts:
    1 to 99100 to 249250 to 499500 to 999Call For
    $0.265$0.140$0.111$0.102Larger Quantities
  • Extended Description: CR3
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
  • BrandVARIED
    Drive Size2
    Drive TypePhillips
    FinishZinc Cr3
    Head Diameter (Max.)8.00 mm
    Head Diameter (Min.)7.60 mm
    Head Height (Max.)3.10 mm
    Head Height (Min.)2.80 mm
    Head Radius (Min.)6.50 mm
    Head TypePan
    Lock Washer Height (Max.)1.65 mm
    Lock Washer Height (Min.)1.32 mm
    Lock Washer Outside Diameter (Max.)8.46 mm
    Lock Washer Outside Diameter (Min.)8.20 mm
    Lock Washer Thickness (Min.)0.76 mm
    MaterialSteel
    Meets (Standard)ASME B18.6.7M
    Nominal Diameter4.00 mm
    Penetration Depth (Max.)2.40 mm
    Penetration Depth (Min.)1.90 mm
    Recess Diameter4.40 mm
    RoHSCompliant
    Thread SizeM4x0.7
    Thread TypeMetric Coarse
    UnitsMetric
    Washer TypeSquare Cone Washer
