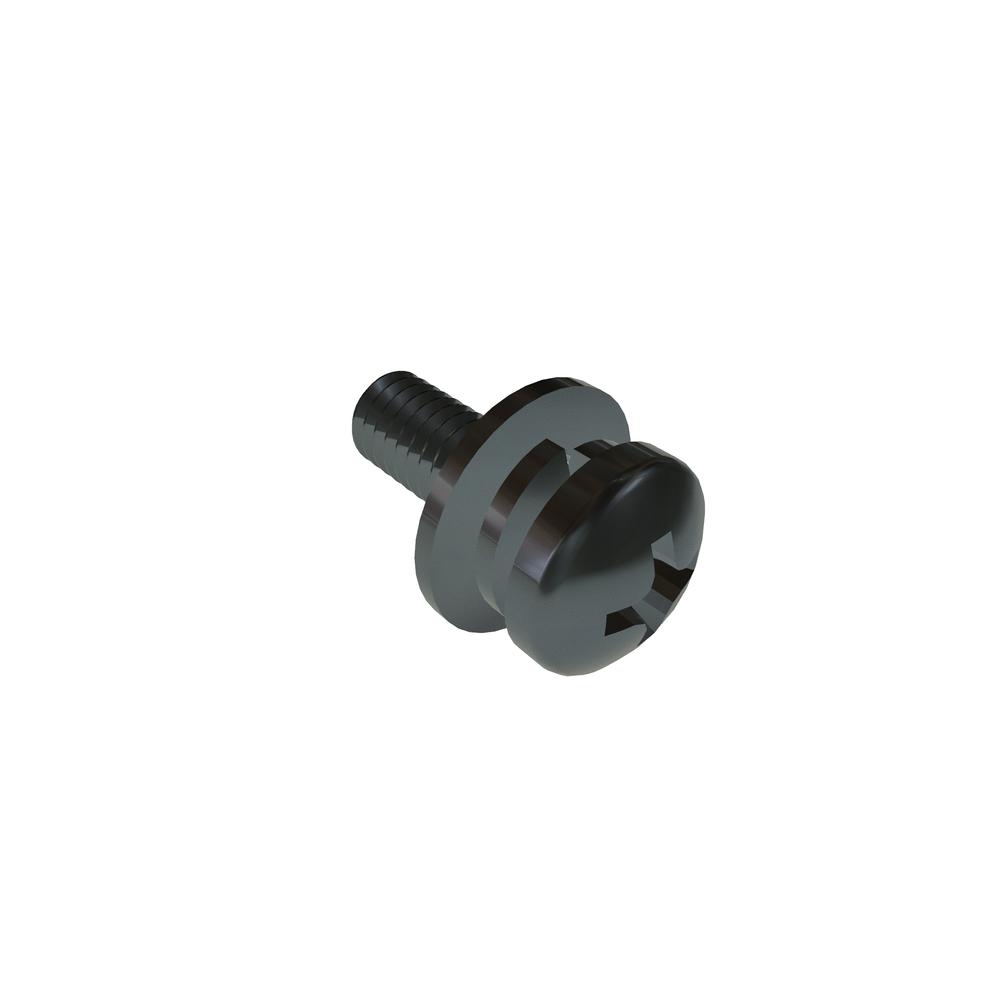

Image for reference purposes only. Actual product may vary.
.4C12PPSZR/P
M4-.7 X 12 PH PAN DBL SEM SL/FW PATCH
Alternate Codes: N/A
M4-.7 X 12 Phillips Pan Head Double Sems Split LockWasher/Flat Washer Patch Steel Zinc Plated RoHS
Pricing per Unit
| 1-99 pcs | 100-249 pcs | 250-499 pcs | 500-999 pcs | 1000-2499 pcs |
|---|---|---|---|---|
| $0.546 | $0.301 | $0.250 | $0.214 | $0.177 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Length | 12mm |
| Thread Size | M4x0.7 |
| Finish | Zinc Cr3 |
| Brand | VARIED |
| Recess Diameter | 4.40 mm |
| Washer Type | Split Lock Washer and Flat Washer |
| Drive Type | Phillips |
| Material | Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 4.00 mm |
| Head Type | Pan |
| Lock Washer Outside Diameter (Min.) | 6.74 mm |
| Lock Washer Outside Diameter (Max.) | 7.00 mm |
| Drive Size | 2 |
| Penetration Depth (Min.) | 1.90 mm |
| Penetration Depth (Max.) | 2.40 mm |
| Head Radius (Min.) | 6.50 mm |
| Self Locking Type | Patchlock |
| Meets (Standard) | ASME B18.6.7M |
| Head Diameter (Max.) | 8.00 mm |
| Head Diameter (Min.) | 7.60 mm |
| Head Height (Max.) | 3.10 mm |
| Head Height (Min.) | 2.80 mm |
| Lock Washer Thickness (Min.) | 1.19 mm |
| Flat Washer Thickness (Min.) | 1.40 mm |
| Flat Washer Thickness (Max.) | 1.00 mm |
| Flat Washer Outside Diameter (Min.) | 12.00 mm |
| Flat Washer Outside Diameter Max | 11.57 mm |
| Lock Washer Inside Diameter (Min.) | 3.60 mm |
| Lock Washer Inside Diameter (Max.) | 3.76 mm |
| Lock Washer Width (Min.) | 1.57 mm |
