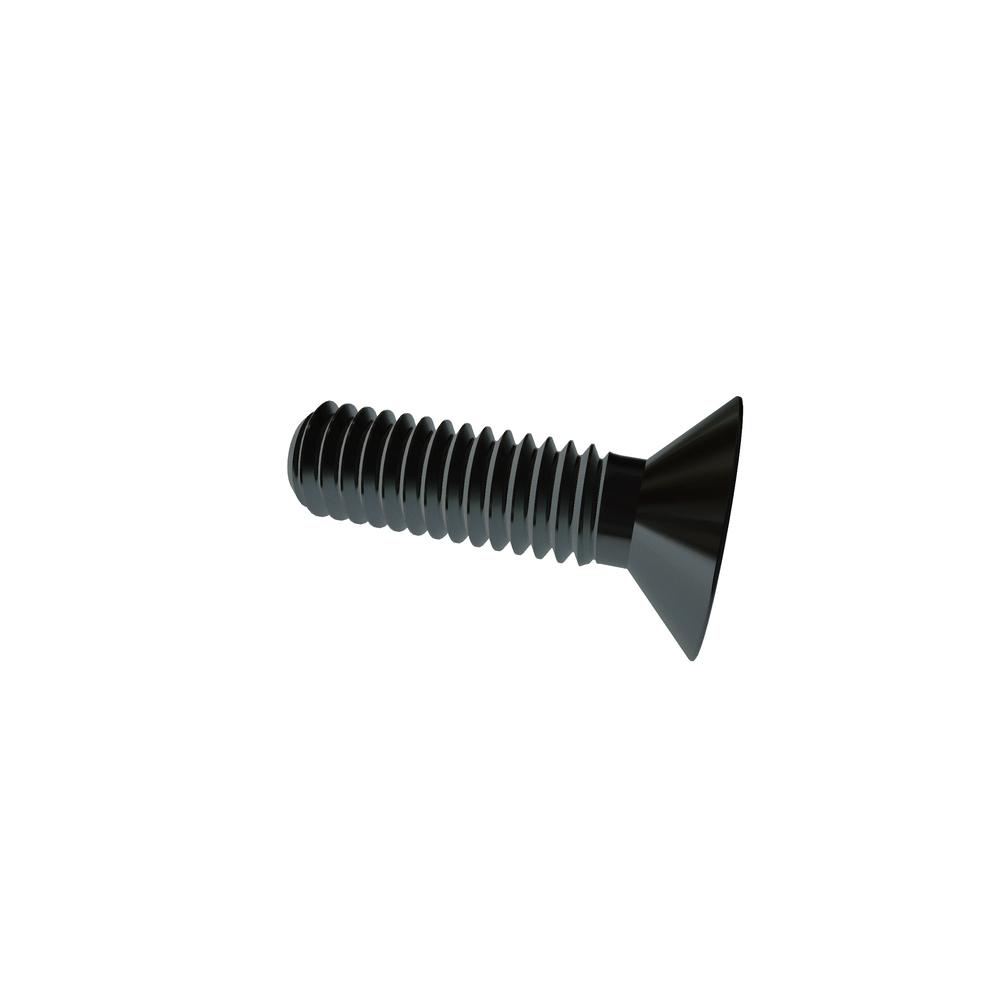

M4-.7 X 14 PHIL FLAT STL ZN CR3

.4C14PFMZR

Item Id.4C14PFMZR
DescriptionM4-.7 X 14 PHIL FLAT STL ZN RoHS
Alternate Codes91420A224
Extended Description
PackagingEA
Additional Industry Cross Reference91420A224 91420A224
BrandVARIED
Drive Size2
Drive TypePhillips
FinishZinc Cr3
Head Diameter (Max.)8.40 mm
Head Diameter (Min.)8.04 mm
Head Height2.70 mm
Head TypeFlat
Length14mm
MaterialSteel
Meets (Standard)ASME B18.6.7M
Nominal Diameter4.00 mm
Recess Depth2.65 mm
Recess Diameter4.6 mm
Recess Width0.96 mm
RoHSCompliant
Thread SizeM4x0.7
Thread TypeMetric Coarse
UnitsMetric
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
