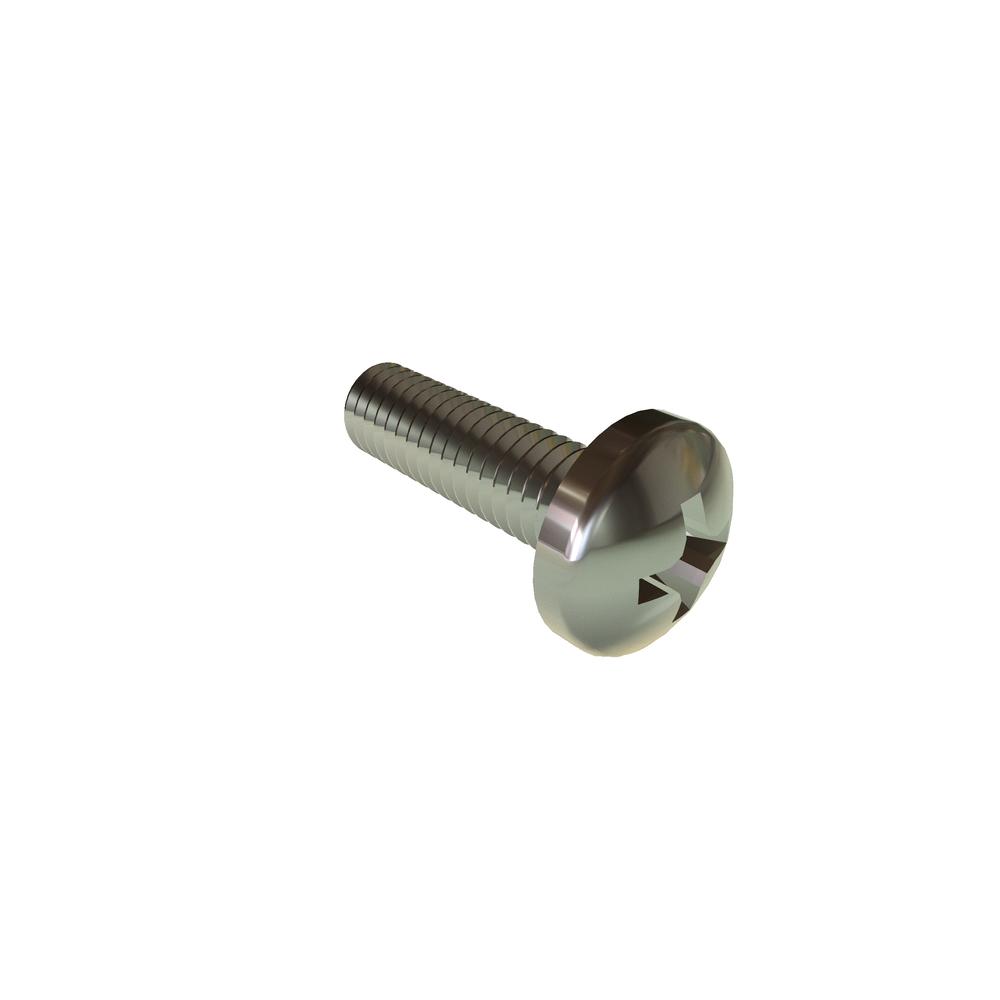

Defaultimage2 .4C14PPMS M4-.7 X 14 PH PAN SST



  • Item Id: .4C14PPMS
  • Description: M4-.7 X 14 PH PAN SST
  • Alternate Codes: 1900-0044, 92000A224
  • Quantity Discounts:
    1 to 249250 to 499500 to 9991000 to 2499Call For
    $0.138$0.083$0.069$0.057Larger Quantities
  • Extended Description: RoHS
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
    • Additional Industry Cross Reference92000A224 92000A224
    Body Diameter (Max.)4.00 mm
    Body Diameter (Min.)3.43 mm
    BrandVARIED
    Drive Size2
    Drive TypePhillips
    FinishPlain
    Head Diameter (Max.)8.00 mm
    Head Diameter (Min.)7.64 mm
    Head Height (Max.)3.10 mm
    Head Height (Min.)2.92 mm
    Head Radius (Min.)6.50 mm
    Head TypePan
    MaterialStainless Steel
    Meets (Standard)B18.6.7M
    Nominal Diameter4.00 mm
    Recess Depth (Max.)2.40 mm
    Recess Depth (Min.)1.90 mm
    Recess Diameter4.40 mm
    RoHSCompliant
    Thread SizeM4x0.7
    Thread TypeMetric Coarse
    UnitsMetric
