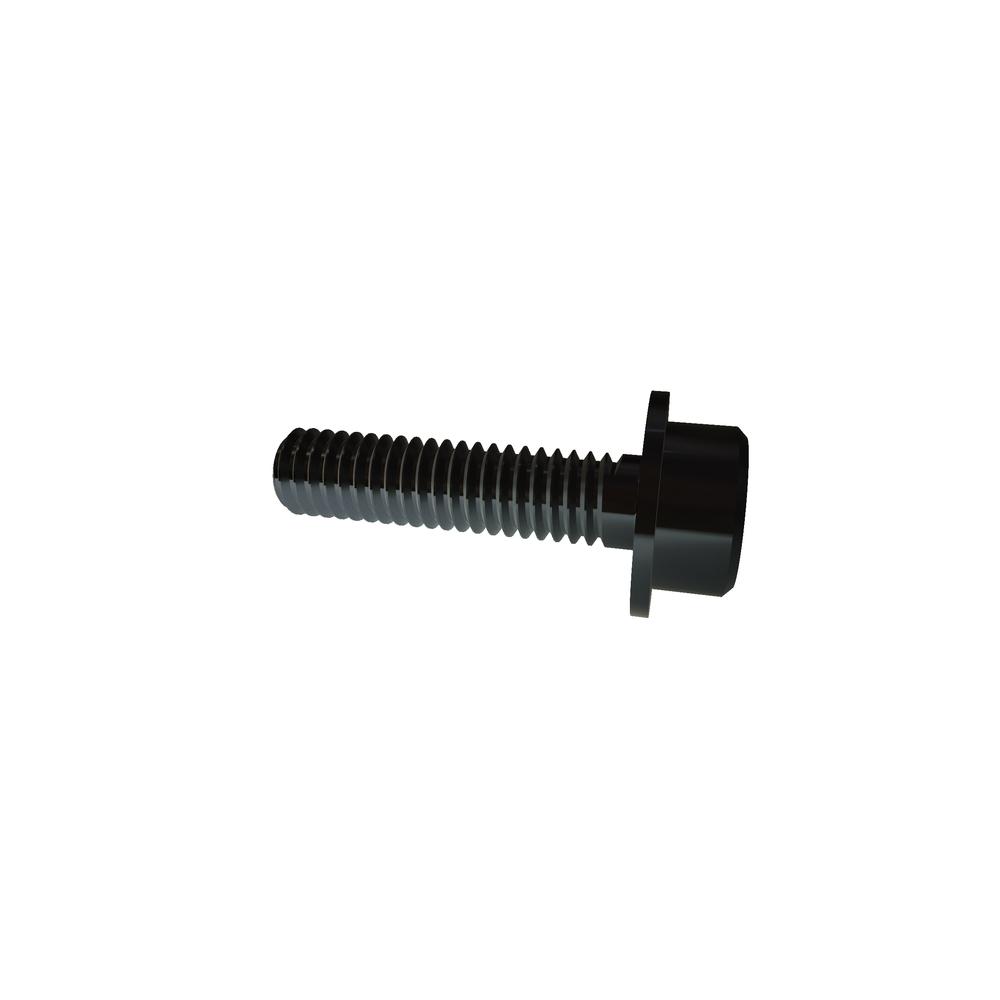

Image for reference purposes only. Actual product may vary.
.4C16FLSA
M4-.07 x 16 FLANGED SOC CAP ALLOY
Alternate Codes: 92235A114
M4-.07 x 16 Flanged Socket Cap 12.9 Alloy RoHS
Pricing per Unit
| 1-99 pcs |
|---|
| $0.880 |
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
In Stock
Maximum stock already in cart
| Thread Size | M4x0.7 |
| Finish | Plain |
| Material | Alloy Steel |
| Head Type | Flanged head |
| Drive Type | Hex Socket |
| Brand | VARIED |
| Length | 16mm |
| Key Engagement (Min.) | 2.00 mm |
| Units | Metric |
| Thread Type | Metric Coarse |
| Flange Diameter (Min.) | 8.82 mm |
| Flange Diameter (Max.) | 9.40 mm |
| Flange Thickness (Min.) | 0.65 mm |
| Flange Thickness (Max.) | 0.80 mm |
| Additional Industry Cross Reference | 92235A114 |
| Meets (Standard) | ASME B18.3.1M |
| Body Diameter (Max.) | 4.00 mm |
| Head Diameter (Max.) | 7.00 mm |
| Head Diameter (Min.) | 6.80 mm |
| Head Height (Max.) | 4.00 mm |
| Head Height (Min.) | 3.88 mm |
| Hex Socket Size | 3.00 mm |
