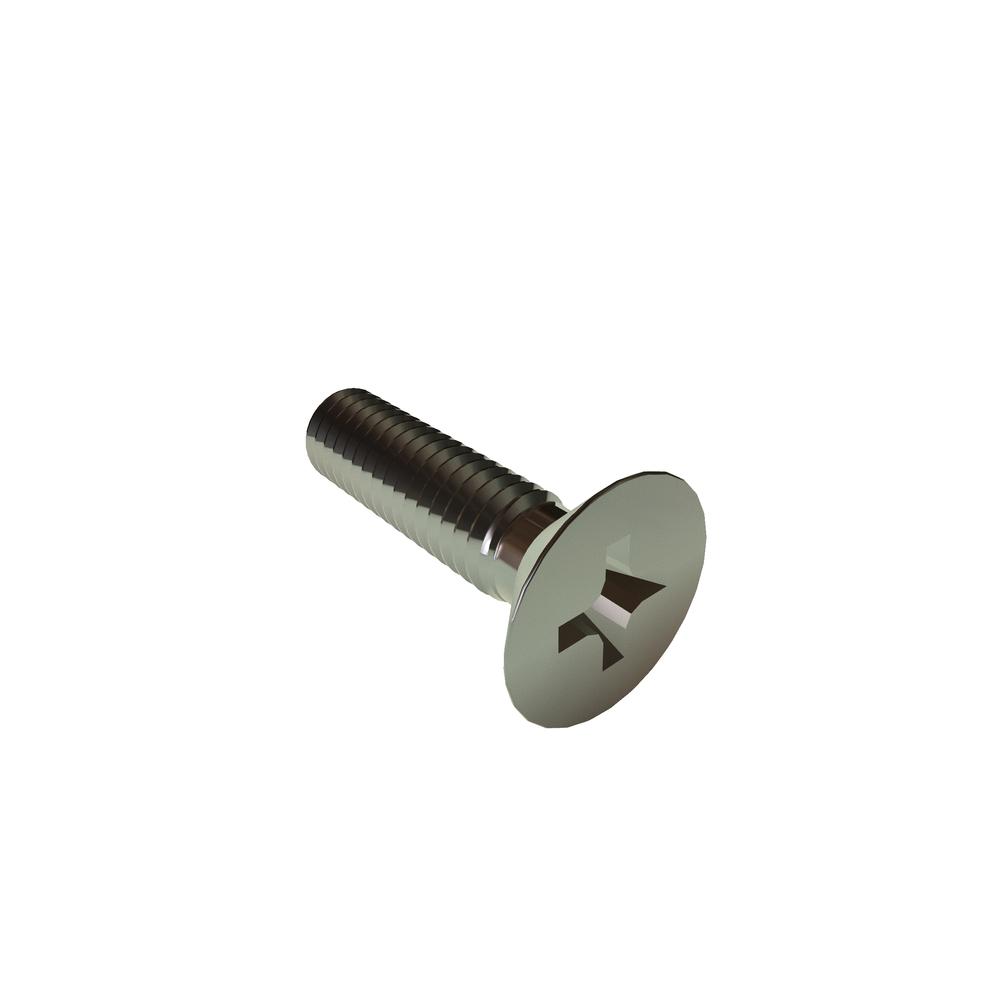

M4-.7 X 16 PHIL FLAT SST RoHS
.4C16PFMS
| Item Id | .4C16PFMS |
| Description | M4-.7 X 16 PHIL FLAT DIN965 SST RoHS |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 92010A226 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 7.50 mm |
| Head Diameter (Max.) | 8.40 mm |
| Head Diameter (Min.) | 7.10 mm |
| Head Diameter (Min.) | 8.04 mm |
| Head Height | 2.20 mm |
| Head Height | 2.70 mm |
| Head Type | Flat |
| Length | 16mm |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.7M |
| Meets (Standard) | DIN 965 |
| Nominal Diameter | 4.00 mm |
| Recess Depth | 2.65 mm |
| Recess Diameter | 4.6 mm |
| Recess Width | 0.96 mm |
| RoHS | Compliant |
| Thread Size | M4x0.7 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
