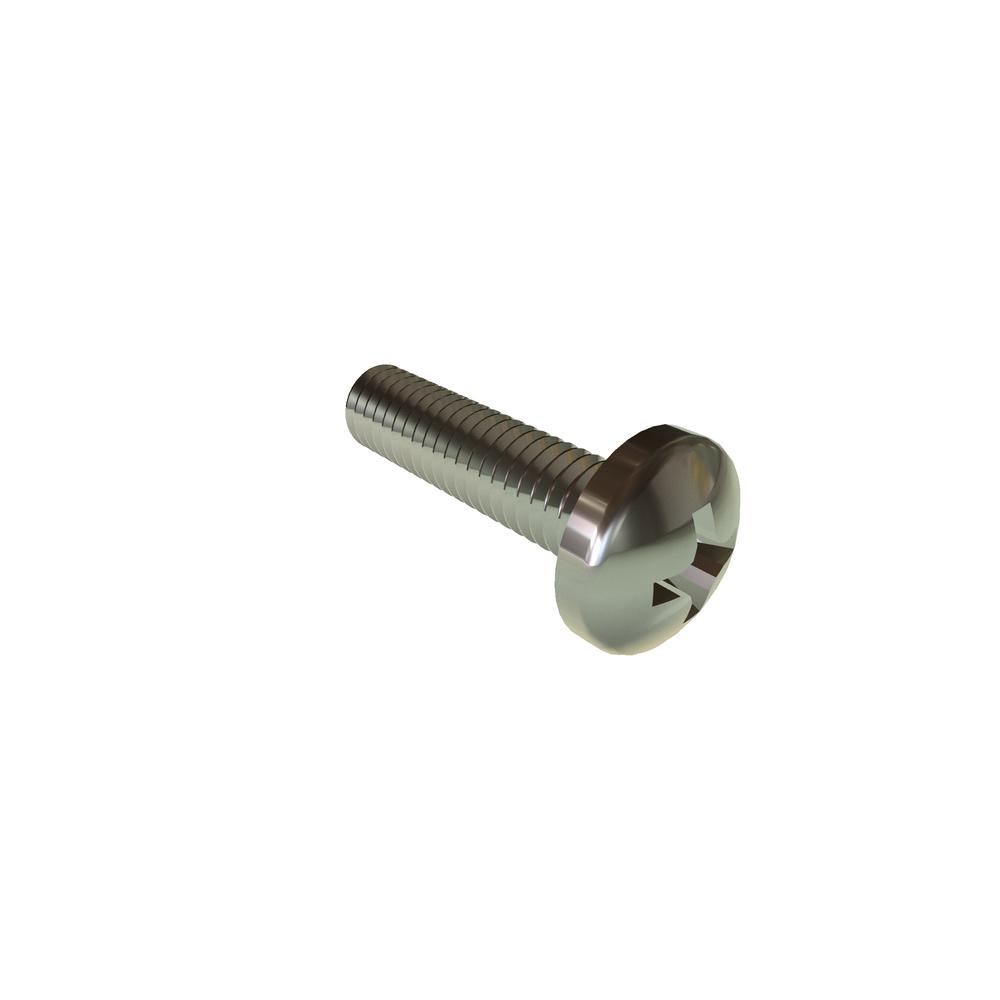

Defaultimage2 .4C16PPMS M4-.7 X 16 PH PAN SST



  • Item Id: .4C16PPMS
  • Description: M4-.7 X 16 PH PAN SST
  • Alternate Codes: 92000A226, BN660 M4X16
  • Quantity Discounts:
    1 to 99100 to 249250 to 499500 to 9991000 to 2499Call For
    $0.318$0.168$0.133$0.122$0.103Larger Quantities
  • Extended Description: RoHS
  • Stock: In Stock
  • Packaging: EA
  • Quantity:
    • Additional Industry Cross Reference92000A226 92000A226
    Body Diameter (Max.)4.00 mm
    Body Diameter (Min.)3.43 mm
    BrandVARIED
    Drive Size2
    Drive TypePhillips
    FinishPlain
    Head Diameter (Max.)8.00 mm
    Head Diameter (Min.)7.64 mm
    Head Height (Max.)3.10 mm
    Head Height (Min.)2.92 mm
    Head Radius (Min.)6.50 mm
    Head TypePan
    MaterialStainless Steel
    Meets (Standard)B18.6.7M
    Nominal Diameter4.00 mm
    Recess Depth (Max.)2.40 mm
    Recess Depth (Min.)1.90 mm
    Recess Diameter4.40 mm
    RoHSCompliant
    Thread SizeM4x0.7
    Thread TypeMetric Coarse
    UnitsMetric

Item Substitutes

Item IdDescription
.4C16PPMS/PM4-.7 X 16 PH PAN PATCH SST RoHSView Details
.4C16PPMZBM4-.7 X 16 PH PAN STL BLK RoHSView Details
.4C16PPMZRM4-.7 X 16 PH PAN STL ZN CR3View Details
