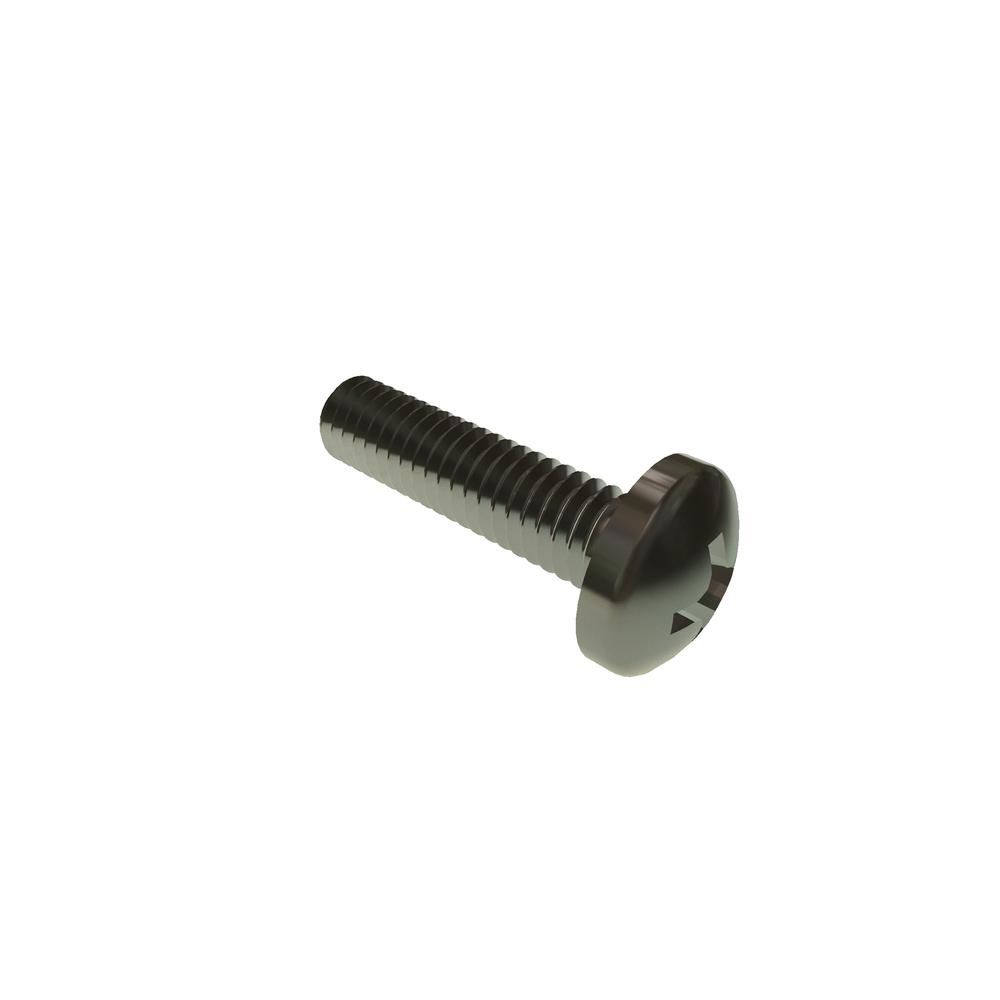

M4-.7 X 16 PH PAN PATCH SST RoHS
.4C16PPMS/P
| Item Id | .4C16PPMS/P |
| Description | M4-.7 X 16 PH PAN PATCH SST RoHS |
| Alternate Codes | 95911A513 |
| Extended Description | |
| Packaging | EA |
| Additional Industry Cross Reference | 95911A513 |
| Brand | VARIED |
| Drive Size | 2 |
| Drive Type | Phillips |
| Finish | Plain |
| Head Diameter (Max.) | 8.00 mm |
| Head Diameter (Min.) | 7.60 mm |
| Head Height (Max.) | 3.10 mm |
| Head Height (Min.) | 2.80 mm |
| Head Radius (Min.) | 6.50 mm |
| Head Type | Pan |
| Locking Element | Patchlock |
| Material | Stainless Steel |
| Meets (Standard) | ASME B18.6.7M |
| Nominal Diameter | 4.00 mm |
| Penetration Depth (Max.) | 2.40 mm |
| Penetration Depth (Min.) | 1.90 mm |
| Recess Diameter | 4.40 mm |
| RoHS | Compliant |
| Thread Size | M4x0.7 |
| Thread Type | Metric Coarse |
| Units | Metric |
Contact Olander sales office for pricing on larger quantities, partial shipments, and secondary processes.
