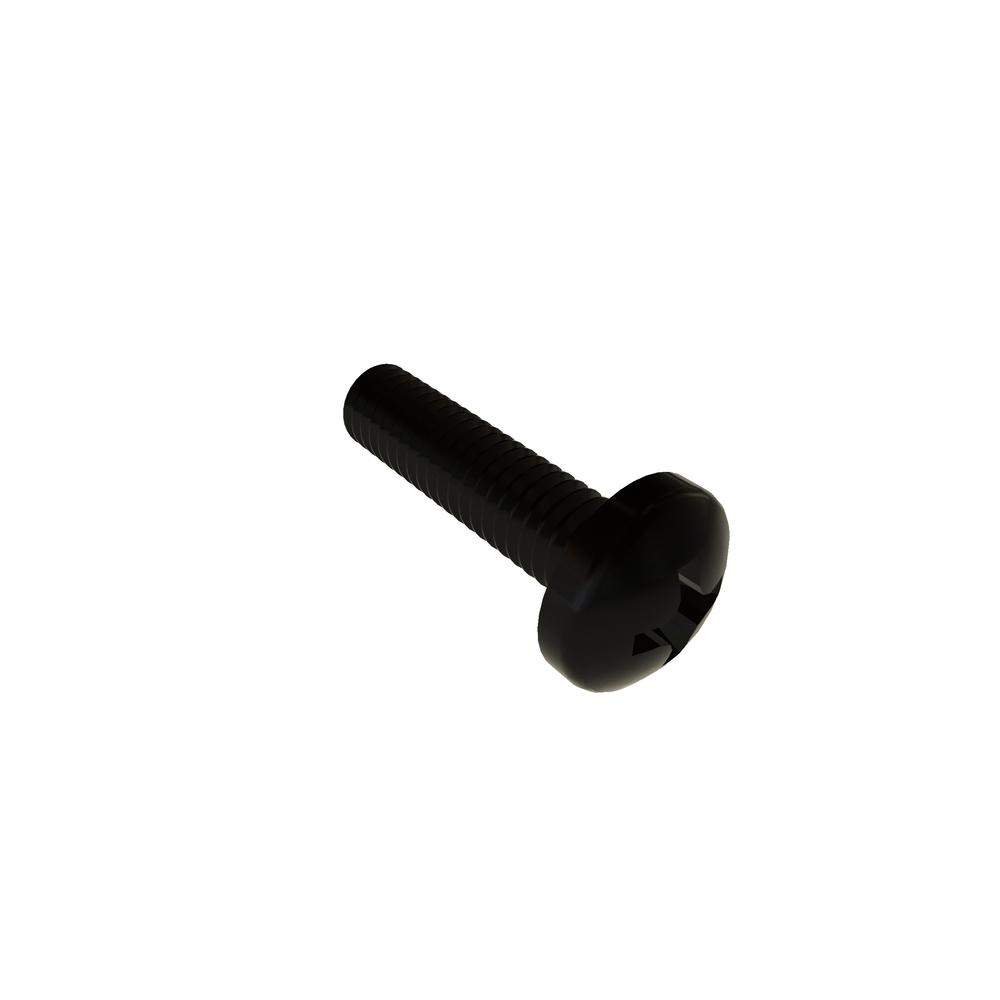

Image for reference purposes only. Actual product may vary.
.4C16PPMZB
M4-.7 X 16 PH PAN STL BLK RoHS
Alternate Codes: N/A
M4-.7 X 16 Phillips Pan Head DIN7985 Steel Black Oxide RoHS
$0.000 / EA
Price is limited to stock on hand, if you would like to purchase more inventory, please call your Olander Inside Sales Representative at (800) 538-1500. We are happy to assist you!
Out of stock
| Length | 16mm |
| Thread Size | M4x0.7 |
| Finish | Black Oxide |
| Brand | VARIED |
| Drive Type | Phillips |
| Material | Steel |
| Units | Metric |
| Thread Type | Metric Coarse |
| Nominal Diameter | 4.00 mm |
| Head Type | Pan |
| Drive Size | 2 |
| Recess Diameter | 4.40 mm |
| Head Radius (Min.) | 6.50 mm |
| Body Diameter (Min.) | 3.43 mm |
| Recess Depth (Min.) | 1.90 mm |
| Recess Depth (Max.) | 2.40 mm |
| RoHS | Compliant |
| Meets (Standard) | B18.6.7M |
| Body Diameter (Max.) | 4.00 mm |
| Head Diameter (Max.) | 8.00 mm |
| Head Diameter (Min.) | 7.64 mm |
| Head Height (Max.) | 3.10 mm |
| Head Height (Min.) | 2.92 mm |
